Elo 1715L Touchscreen Elo 1715L Touchscreen Elo 1715L Touchscreen Elo 1715L Touchscreen

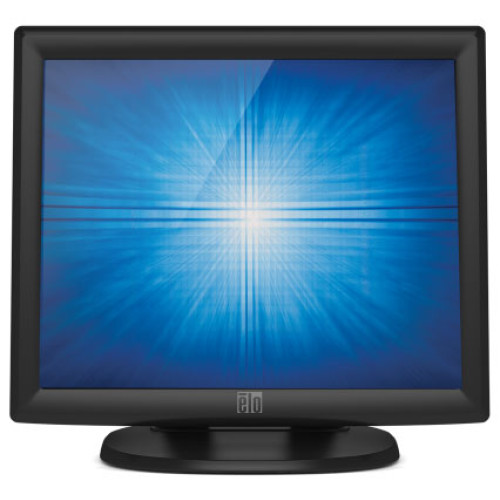

Elo 1715L Touchscreen

Elo 1715L Touchscreen

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo's quality and reliability into an integrated, affordable touchmonitor.
Starting at: MSRP: $1,010.00 Price: $739.32
See all options
Elo 1715L Specs Elo 1715L Specs (pdf)
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo's quality and reliability into an integrated, affordabletouchmonitor.

Features

  • Entry-level monitor with Elo quality
  • "Designed for touch" features such as a stable tilt base
  • Long-lasting product cycle
  • Available with IntelliTouch Surface Wave Technology or AccuTouch Five-Wire Resistive Technology
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable base and VESA mounting option
  • Mounting holes on base bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals

Specifications

Model 1715L
Series 1000
Availability

Worldwide
Case/bezel color Dark gray
Display Size: 17.0"diagonal
Type: Active matrix TFT LCD
Aspect ratio: 5 x 4
Useful screen area Horizontal: 13.3" (338 mm)
Vertical: 10.6" (270 mm)
Monitor dimensions Width: 15.4" (391 mm)
Height (inc. base): 14.4" (366 mm)
Depth (inc. base): 8.0" (203 mm)
Optimal (native) resolution 1280 x 1024
Other supportedresolutions 1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Colors 16.2 million with dithering
Brightness
LCD panel		 250 cd/m2 (typical)
Brightness
LCD panel with touchscreen		 AccuTouch: 205 cd/m2 (typical)
IntelliTouch: 230 cd/m2 (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center)		 Horizontal (left/right): +/-70° or 140° total
Vertical (up/down): 63°/60° or 123° total
Contrast ratio 450:1 (typical)
Input video format RGB analog only
Input sync format Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector Mini D-Sub 15-Pin VGA type
Input frequency Horizontal: 31.5-80 kHz
Vertical: 56.3-75 Hz
Power supply Type: Internal, with jack to accept power from optional external brick
Monitor input voltage: 100-240 VAC, 50/60 Hz
Optional input voltage: +12 VDC +/-5%
Power dissipation 50 W max.
Temperature Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity Operating: 20%-80%
Storage: 10%-90%
noncondensing
Weight
(approx.)		 Actual: 15.2 lb (6.9 kg)
Shipping: 21.2 lb (9.6 kg)
Warranty Backlight lamp life: typical 30,000 hours to half brightness
MTBF: 50,000 hours demonstrated
Agency approvals UL, cUL, FCC, CE, TUV-GS, VCCI, IC, C-Tick
On-screendisplay (OSD) Digital OSD
User'scontrols OSD buttons: menu,up, down, select, power
OSD: contrast, brightness, H/V position, RGB (color temp), clock,phase, recall, language (English, German, Spanish, Japanese, French)
OSD disable/enable: power, OSD menu
Mounting options Threaded-through mounting holes, under base
Removable base, 100 mm VESA mount
Extended Details
Refine Your Options
Shop By
Shopping Options
Display Type
  1. LCD (3)
Form Factor
  1. Desktop (3)
Color
  1. Gray (3)
  1. Elo E719160 Touchscreen

    Elo E719160 Touchscreen
    Part #: E719160 | SKU: ELO84581

    17" Touchscreen Monitor - Elo 1715L - Desktop LCD - 5:4 Aspect Ratio - IntelliTouch Single-Touch - 1280 x 1024 - 16.7 million Colors - 225 nits Brightness (typical) - 1000:1 Contrast Ratio (typical) - VGA Video Interface - Dual Serial/USB Touch Controller Interface - Anti-Glare - Bezel - No Stand - Dark Gray - 3-Year Warranty - Worldwide. Box Includes Quick Install Guide - User Manual CD - VGA Cable - Serial Cable (Attached if Support Combo) - Power Cord (Part# E042259) - USB Cable (Part# E378229).
    $866.15
    See Price in Cart (Why?)
    In Stock
  2. Elo E603162 Touchscreen

    Elo E603162 Touchscreen
    Part #: E603162 | SKU: ELO84580

    17" Touchscreen Monitor - Elo 1715L - Desktop LCD - 5:4 Aspect Ratio - AccuTouch Single-Touch - 1280 x 1024 - 16.7 million Colors - 200 nits Brightness (typical) - 1000:1 Contrast Ratio (typical) - VGA Video Interface - Dual Serial/USB Touch Controller Interface - Anti-Glare - Bezel - No Stand - Dark Gray - 3-Year Warranty - Worldwide. Box Includes Quick Install Guide - User Manual CD - VGA Cable - Serial Cable (Attached if Support Combo) - Power Cord (Part# E042259) - USB Cable (Part# E378229).
    $858.50
    See Price in Cart (Why?)
    In Stock
  3. Elo E975195 Touchscreen

    Elo E975195 Touchscreen
    Part #: E975195 | SKU: ELO242573

    Elo 1715L 17" LCD Touchscreen Monitor - 5:4 - 25 ms - 17" Class - Resistive - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 800:1 - 280 Nit - Speakers - USB - VGA - Dark Gray - China RoHS, MPR II - 3 Year
  4. Elo C20990-000 Touchscreen

    Elo C20990-000 Touchscreen
    Part #: C20990-000 | SKU: ELO20420

    Elo 3000 Series 1715L Touchscreen LCD Monitor - 17" - Surface Acoustic Wave - Dark Gray
  5. Elo E292567 Touchscreen

    Elo E292567 Touchscreen
    Part #: E292567 | SKU: ELO20743

    Elo 1000 Series 1715L Touch Screen Monitor - 17" - Surface Acoustic Wave - Dark Gray
  6. Elo E537168 Touchscreen

    Elo E537168 Touchscreen
    Part #: E537168 | SKU: ELO20744

    Elo 1715L 17" LCD Touchscreen Monitor - 5:4 - 25 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.2 Million Colors - 450:1 - 250 Nit - USB - VGA - Gray
  7. Elo E324654 Touchscreen

    Elo E324654 Touchscreen
    Part #: E324654 | SKU: ELO31563

    Elo 1000 Series 1715L Touch Screen Monitor - 17" - 1280 x 1024 - 5:4
  8. Elo E832132 Touchscreen

    Elo E832132 Touchscreen
    Part #: E832132 | SKU: ELO84582

    Elo 1715L 17" LCD Touchscreen Monitor - 5:4 - 25 ms - 17" Class - Surface Acoustic Wave - 1280 x 1024 - SXGA - 16.2 Million Colors - 800:1 - 280 Nit - USB - VGA - Dark Gray
