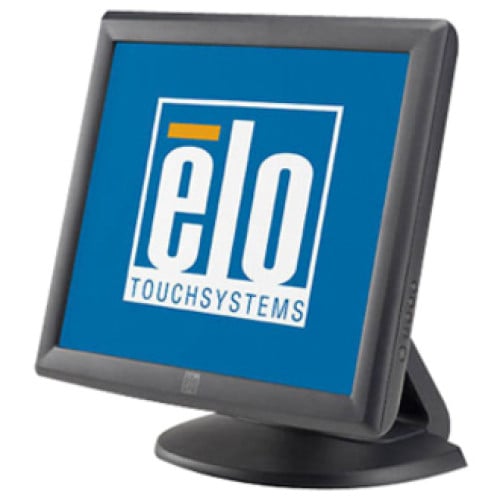

Elo E603162 Touchscreen
Part #: E603162 | SKU: ELO84580

Introducing the Elo 1715L 17-inch standard format touchscreen monitor that delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options. The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. The 17-inch touchscreen monitor features AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment. The Elo 1715L 17-inch standard format touchscreen monitor is designed, developed and built to provide a space-saving and cost-effective touch solution. The 17-inch touchscreen monitor can function as a desktop or wall mounted unit and includes a VESA mounting option. The touchscreen is factory-sealed against dirt, dust, and liquids With controls on the side rather than the front, the touchscreen can be locked-out for public use.

Elo E603162 Touchscreen

Part Details: 17" Touchscreen Monitor - Elo 1715L - Desktop LCD - 5:4 Aspect Ratio - AccuTouch Single-Touch - 1280 x 1024 - 16.7 million Colors - 200 nits Brightness (typical) - 1000:1 Contrast Ratio (typical) - VGA Video Interface - Dual Serial/USB Touch Controller Interface - Anti-Glare - Bezel - No Stand - Dark Gray - 3-Year Warranty - Worldwide. Box Includes Quick Install Guide - User Manual CD - VGA Cable - Serial Cable (Attached if Support Combo) - Power Cord (Part# E042259) - USB Cable (Part# E378229).
In Stock

Additional Information

Color Gray
Display Type LCD
Form Factor Desktop
Manufacturer Elo
Model Name 1715L

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 25 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1715L
  • Product Name: 1715L Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 14.4"
  • Width: 15.4"
  • Depth: 8"
  • Color: Dark Gray
  • Weight (Approximate): 15.20 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 280 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Power Description

  • Operating Power Consumption: 50 W
Extended Details

Recommended Accessories for Model: Elo E603162 Touchscreen

  • Elo D82064-000 Accessory
    Part #: D82064-000 | SKU: ELO24685

    Stylus - ELO - Color: Black - Soft Tip Stylus Pen for IntelliTouch Monitors
    Price: $30.88
    In Stock
  • Elo E042259 Accessory
    Part #: E042259 | SKU: ELO31558

    Power Systems & Supplies - ELO - Cable - AC Power - 6 Feet - Compatible with ELO Power Brick
    Price: $20.73
  • Elo E378229 Accessory
    Part #: E378229 | SKU: ELO28182

    Gray Accessories Kit (LCD/CRT)

Recommended Warranties for Model: Elo E603162 Touchscreen

  • Elo E895125 Service Contract
    Part #: E895125 | SKU: ELO537406

    Service Contracts - ELO - 5 Year Extended Warranty - Advance Unit Replacement - Maintenance - Parts & Labor - Touch Monitor and Small Format Open Frame
    MSRP: $126.00 Price: $120.13
    In Stock
  • Elo E898648 Service Contract
    Part #: E898648 | SKU: ELO537416

    Service Contracts - ELO - Elo Touch Monitor 3 Year Extended Warranty - Advance Unit Replacement - Maintenance - Parts & Labor
    MSRP: $55.00 Price: $54.21
