Hand Held ImageTeam 3800 Details

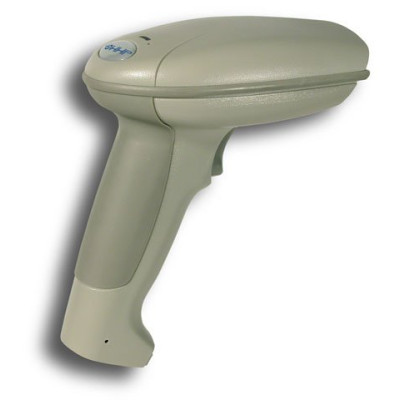

The IMAGETEAM? 3800LX is a longer range, high performance, hand held barcode scanner.
The IT3800LX uses linear imaging technology to match the reading distance of standard range lasers with a bright, sharp aiming line. In addition, the IT3800LX offers high resolution imaging to deliver exceptional reading performance.
The IT3800LX handle is smoothly contoured to fit all sized hands, plus has a soft grip area to add comfort and prevent slipping. Its aesthetically pleasing look surrounds a rugged, durable construction, built for demanding work environments. The IT3800LX is so durable, it carries a 5 year warranty.
The IT3800LX is excellent in hand held scanning applications, such as retail point of sale and in-store inventory. It operates from a tabletop holder in manual trigger mode, or may be placed in an adjustable stand for automated operation. The IT3800LX can be used indoors or outside in bright sunlight. Typical applications are retail point-of-sale, in-store inventory, document management, transaction processing of barcoded receipts, payment counter, and outdoor sales kiosks.
Even More Reading Distance - Provides greater range on UPC than standard lasers for faster, easier point-of-sale scanning.
Bright, Sharp and Focused Aiming Line - Easy to aim and scan codes in any lighting condition from darkness to full sunlight, on tightly stacked barcode sheets, or small, high resolution labels.
Solid, Rugged Design - No moving parts inside and solid construction outside deliver years of reliable service in demanding work environments.
Powerful, Flexible Architecture - Connects and interfaces to all major PCs, commercial and retail POS terminals easily and quickly with Windows?-based programming tools or barcode programming menus.
Real World Reading Performance - Accommodates printer induced bar space variation, faded labels, short quiet zones, low contrast codes, dot matrix printing, and multipart forms with higher resolution, better optics, and improved decoding algorithms.
5 Year Warranty
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
From 2 in. (5.1 cm) to 16 in. (40.6 cm) on 100% UPC codes
From 3 in. (7.6 cm) to 36 in. (91.4 cm) on 40 mil codes
6 in. (15.2 cm) code width at 9 in. (22.9 cm) distance on 100% UPC
16 in. (40.6 cm) code width at 25 in. (63.5 cm) on 40 mil
Resolution: 6.5 mil. at 5.5 in. (14 cm) distance
Skew Angle: +30o
Pitch? Angle: +15o
Horizontal Velocity: 2 in. (5.1 cm) per second
Minimum Reflectance Difference: 30%
Scan Rate: Programmable to 270 scans per second
Decode Rate: 270 decodes per second
Length: 5.3 in. (13.5 cm)
Height: 6 in. (15.2 cm)
Width: 3.1 in. (7.9 cm)
Weight: 6.3 oz. (179.2 g)
Housing: Polycarbonate/ABS blend, UL 94V0
Power Requirements: 5Vdc + 10% at scanner
Noise Rejection: Maximum 100mV peak to peak, 10 to 100 kHz
Operating: +32oF to +122oF (0oC to +50oC)
Storage: -4oF to 140oF (-40oC to +60oC)
Humidity: 0 to 95%
Mechanical Shock: Operational after 25 drops from 5 ft. (1.53 m) to concrete
Ambient Illumination:? 0 - 70,000 lux
ESD Protection: Functional after 15kV discharge
Vibration: Withstands 5G peak from 20 to 300 Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL listed, T?V
MTBF: per MIL-HDBK-217F Ground Benign exceeds 100,000 hours
Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, RSS Code, Matrix 2 of 5, Code 11, Code 128, UPC, EAN/JAN, China Postal Code, RSS.
Most popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, IBM SurePOS USB,? TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and includes (HHLC) non decoded laser compatible output.?? IBM 4683/93 and OCIA retail terminals in 3800LR-11 model.
Warranty: Five year factory warranty
