Hand Held 3800LR-12SERKIT Barcode Scanner Hand Held 3800LR-12SERKIT Barcode Scanner Hand Held 3800LR-12SERKIT Barcode Scanner

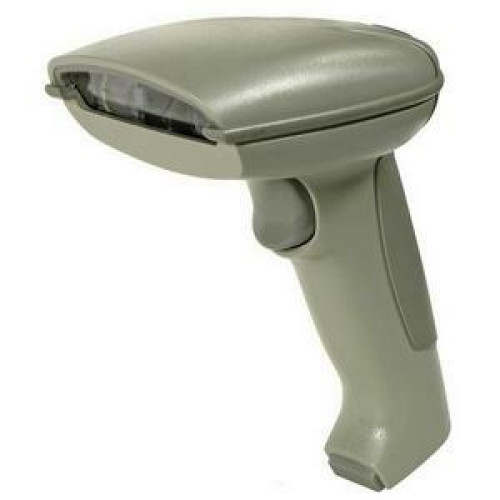

Hand Held 3800LR-12SERKIT Barcode Scanner
Part #: 3800LR-12SERKIT | SKU: HAN4685

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held 3800LR-12SERKIT Barcode Scanner

Part Details: LR High Performance Linear Imager Serial Kit (includes Long Range Scanner, Holder, RS-232 Cable with Power Stealer and Quick Start Guide)
Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 28 configurations

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 3800
Scanner Capability 1D
Scanner Type Imager
Hand Held ImageTeam 3800 Specs Hand Held ImageTeam 3800 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • PDF 417
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 2.5 - 4"@3mils
    • 2 - 7.5"@7.5mils
    • 1 - 9.5"@13mils

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 3800LR Barcode Scanner

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE low voltage directive
    • IEC 60825-1 LED
    • Class 1
    • UL
    • cUL listed
    • TUV

Other

  • Package Contents:
    • 3800LR Barcode Scanner
    • RS232 cable
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)
Extended Details
