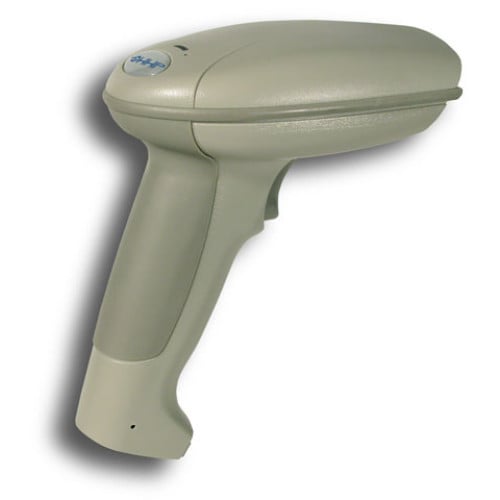

Hand Held ImageTeam 3800 Scanner

Hand Held ImageTeam 3800 Scanner

The IMAGETEAM 3800 is a high performance handheld barcode scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.
  • Modern Design - Attractive styling compliments most existing POS environments, while user comfort is enhanced by the smooth handle curves, soft molded grip area, and comfortable trigger.
  • Real World Reading Performance - Accommodates printer induced bar space variation, faded labels, short quiet zones, low contrast codes, dot matrix printing, and multipart forms with higher resolution, better optics, and improved decoding algorithms.
  • Bright, Sharp and Focused Aiming Line - Easy to aim and scan codes in any lighting condition from darkness to full sunlight, tightly stacked barcode sheets, or small, high resolution labels.
  • Increased Reading Distances - Easily covers the full range of handheld scanning uses in point of sale and general purpose scanning applications.
  • Powerful, Flexible Architecture - Connects and interfaces to all major PCs, commercial and retail POS terminals easily and quickly with Windows based programming tools or barcode programming menus.
  • Solid, Rugged Design - No moving parts inside and solid construction outside deliver years of reliable service in demanding work environments.

Overview

The IMAGETEAM? 3800LX is a longer range, high performance, hand held bar code scanner.

The IT3800LX uses linear imaging technology to match the reading distance of standard range lasers with a bright, sharp aiming line. In addition, the IT3800LX offers high resolution imaging to deliver exceptional reading performance.

The IT3800LX handle is smoothly contoured to fit all sized hands, plus has a soft grip area to add comfort and prevent slipping. Its aesthetically pleasing look surrounds a rugged, durable construction, built for demanding work environments. The IT3800LX is so durable, it carries a 5 year warranty.

The IT3800LX is excellent in hand held scanning applications, such as retail point of sale and in-store inventory. It operates from a tabletop holder in manual trigger mode, or may be placed in an adjustable stand for automated operation. The IT3800LX can be used indoors or outside in bright sunlight. Typical applications are retail point-of-sale, in-store inventory, document management, transaction processing of bar coded receipts, payment counter, and outdoor sales kiosks.

Features

Even More Reading Distance - Provides greater range on UPC than standard lasers for faster, easier point-of-sale scanning.

Bright, Sharp and Focused Aiming Line - Easy to aim and scan codes in any lighting condition from darkness to full sunlight, on tightly stacked bar code sheets, or small, high resolution labels.

Solid, Rugged Design - No moving parts inside and solid construction outside deliver years of reliable service in demanding work environments.

Powerful, Flexible Architecture - Connects and interfaces to all major PCs, commercial and retail POS terminals easily and quickly with Windows?-based programming tools or bar code programming menus.

Real World Reading Performance - Accommodates printer induced bar space variation, faded labels, short quiet zones, low contrast codes, dot matrix printing, and multipart forms with higher resolution, better optics, and improved decoding algorithms.

5 Year Warranty

Specifications

Performance

Illumination: 630 NM Visible Red LED

Receiving Device: 3648 element linear imager

Reading Distance:??????

From 2 in. (5.1 cm) to 16 in. (40.6 cm) on 100% UPC codes

From 3 in. (7.6 cm) to 36 in. (91.4 cm) on 40 mil codes

Reading Width:

6 in. (15.2 cm) code width at 9 in. (22.9 cm) distance on 100% UPC

16 in. (40.6 cm) code width at 25 in. (63.5 cm) on 40 mil

Resolution: 6.5 mil. at 5.5 in. (14 cm) distance

Skew Angle: +30o

Pitch? Angle: +15o

Horizontal Velocity: 2 in. (5.1 cm) per second

Minimum Reflectance Difference: 30%

Scan Rate: Programmable to 270 scans per second

Decode Rate: 270 decodes per second

Mechanical/Electrical

Dimensions

Length: 5.3 in. (13.5 cm)

Height: 6 in. (15.2 cm)

Width: 3.1 in. (7.9 cm)

Weight: 6.3 oz. (179.2 g)

Housing: Polycarbonate/ABS blend, UL 94V0

Power Requirements: 5Vdc + 10% at scanner

Current Draw: Scanning? Standby
@270 s/s 275mA 125mA?
@67 s/s? 150mA 125mA
IT3800LX-14:
@270 s/s 125mA 150mA?
IT3800LX-15:
@270 s/s? 500mA? 265mA?

Power Supply

Noise Rejection: Maximum 100mV peak to peak, 10 to 100 kHz

Environmental

Temperature

Operating: +32oF to +122oF (0oC to +50oC)

Storage: -4oF to 140oF (-40oC to +60oC)

Humidity: 0 to 95%

Mechanical Shock: Operational after 25 drops from 5 ft. (1.53 m) to concrete

Ambient Illumination:? 0 - 70,000 lux

ESD Protection: Functional after 15kV discharge

Vibration: Withstands 5G peak from 20 to 300 Hz

Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL listed, T?V

MTBF: per MIL-HDBK-217F Ground Benign exceeds 100,000 hours

Symbologies:

Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, RSS Code, Matrix 2 of 5, Code 11, Code 128, UPC, EAN/JAN, China Postal Code, RSS.

Interfaces:

Most popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, IBM SurePOS USB,? TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and includes (HHLC) non decoded laser compatible output.?? IBM 4683/93 and OCIA retail terminals in 3800LR-11 model.

Warranty: Five year factory warranty

Extended Details
Refine Your Options
  1. 3800PDF-12E - Hand Held ImageTeam 3800 Bar code Scanner

    PDF417 Linear Imager (Long Range Scanner, HHLC, PDF417 Capable, Commercial Interface and)
  2. 3800PDF-MDKITE - Hand Held ImageTeam 3800 Bar code Scanner

    PDF417 Linear Imager (Keyboard wedge Kit, Cable, Unit, HOLDER and User Guide)
  3. 3800VHD-12E - Hand Held ImageTeam 3800 Bar code Scanner

    ImageTeam 3800, Scanner only, Very high-density, Long range, HHLC, Commercial interface. Cable not included. See accessories.
  4. 3800VHD/ESD-12E - Hand Held ImageTeam 3800 Bar code Scanner

    ImageTeam 3800, Scanner only, Very high-density, electrostatic discharge resistant, Long range, HHLC, Commercial interface. Cable not included. See accessories.
  5. 3800LR-12UGKITBE - Hand Held ImageTeam 3800 Bar code Scanner

    HANDHELD, 3800LR, DECODED, BLACK, 38HOLDER, GUIDE (REQ.Cable) RoHS
  6. 994572E - Hand Held ImageTeam 3800 Bar code Scanner

    HHP, 3800LR-12, BLACK, WITH CUSTOM SOFTWARE, KAI, RoHS
  7. 3800PDF-USBKITE - Hand Held ImageTeam 3800 Bar code Scanner

    ImageTeam 3800, USB kit, includes scanner, USB cable (42206368-01E), and Quick Start Guide.
  8. 015305 - Hand Held ImageTeam 3800 Bar code Scanner

    ImageTeam 3800, Scanner, Commercial Interface, Gray Housing
  9. 3800LTP-12E - Hand Held ImageTeam 3800 Bar code Scanner

    ImageTeam 3800, Linear Image Scanner, RS-232 and Keyboard wedge Only and, White
