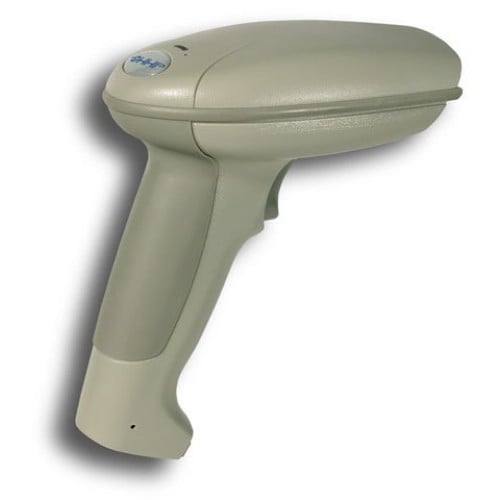

Hand Held ImageTeam 3800 Barcode Scanner Part # 3800LX-12MDKITE

The IMAGETEAM 3800 is a high performance handheld barcode scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

3800LX-12MDKITE - Hand Held ImageTeam 3800 Bar code Scanner

Part Details: LX Handheld Linear Imager (Extended Long Range Scanner, Keyboard wedge Kit, HOLDER, MD CABLE and Guide)
New

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 3800
Product Condition New
Scanner Capability 1D
Scanner Type Imager

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 6.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • RSS Code
    • Matrix 2 of 5
    • Code 11
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • Wand Emulation
    • HHLC Non-decoded Laser Compatible
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5 V DC
  • Depth of Field: 2 - 14" - 100% UPC

General Information

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz
  • Color: Beige

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
Extended Details

Recommended Accessories
