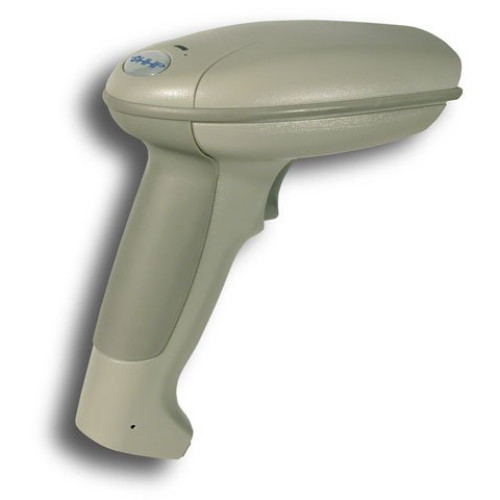

Hand Held ImageTeam 3800 Barcode Scanner Part # 3800LR-12USBKITE

The IMAGETEAM 3800 is a high performance handheld barcode scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

3800LR-12USBKITE - Hand Held ImageTeam 3800 Bar code Scanner

Part Details: LR High Performance Linear Imager (USB Interface, Holder, USB Cable, User Guide and)
New

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 3800
Product Condition New
Scanner Capability 1D
Scanner Type Imager

Technical Information

  • Scan Pattern: Linear
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • PDF 417
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • PDF 417
  • Maximum Scan Resolution: 3 mil
  • Depth of Field: 1" - 8"@ - 100% UPC

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800LR
  • Product Name: 3800LR Barcode Reader

Physical Characteristics

  • Height: 6"
  • Width: 3.1"
  • Depth: 5.3"
  • Color: Beige
  • Weight (Approximate): 3.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 3800LR Barcode Reader
    • Holder
    • USB Coiled Cable
    • User Documentation
    • 3800LR Barcode Reader
    • Holder
    • USB Coiled Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • RoHS
  • Platform Supported:
    • PC
    • Mac
  • Additional Information:
    • Supported Interfaces:
    • Wand Emulation
    • Serial
    • HHLC Non-decoded Laser Compatible
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
