Hand Held 3800LX-15 Barcode Scanner Hand Held 3800LX-15 Barcode Scanner Hand Held 3800LX-15 Barcode Scanner

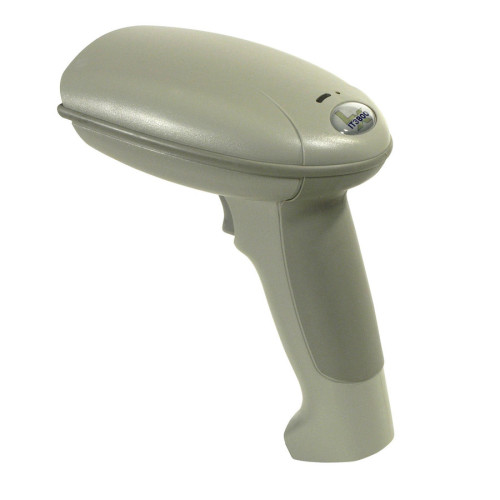

Hand Held 3800LX-15 Barcode Scanner
Part #: 3800LX-15 | SKU: HAN22586

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held 3800LX-15 Barcode Scanner

Part Details: ImageTeam 3800, extended long range IBM USB, Beige, Requires cable, NEW #3800G05E
Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 28 configurations

Additional Information

Manufacturer AIDC Hand Held
Model Name ImageTeam 3800
Scanner Capability 1D
Hand Held ImageTeam 3800 Specs Hand Held ImageTeam 3800 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 6.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Options: Decoded Output USB Retail Interface
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 2 - 16" - 100% UPC
    • 3 - 36"@40mils

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 3800LX Barcode Scanner

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED
    • Class 1
    • UL
    • cUL listed
    • TÃ
Extended Details
