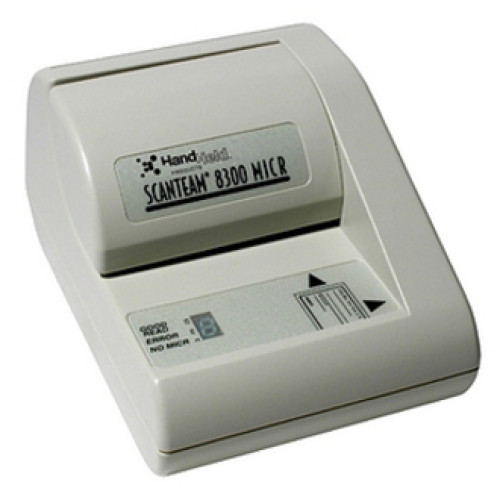

Honeywell 8300-4112 Check Reader
Part #: 8300-4112 | SKU: HON4740

The SCANTEAM 8300 product line is a family of check reader products with various interface and decoding capabilities. All versions utilize a magnetic MICR read head and include a host system interface port. Versions of the product are available which support the direct connection to POS terminal I-O Ports integrated bar coded document reading numerous keyboard wedge interfaces hand held scanner decoding integrated magnetic stripe reader and auxiliary RS-232 I-O ports. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product. The ST8300 products provide multiple options in meeting the data capture needs of retail and financial transaction systems. The ST8300 may be ordered with options which provide an integrated triple track mag stripe reader a bar code scanner port and two RS-232 ports for future peripherals such as PIN Pads or a Signature Capture Pad. The ST8300 is compatible with hundreds of POS and teller systems through the built in interface-wedge controller. The ST8300 typically operates from +5 volt or +12 volt power from the host device and does not require external power pack or connector blocks.

Honeywell 8300-4112 Check Reader

Part Details: SCANTEAM 8300 MICR Check Reader (Retail Interface - Serial RS-232, PC-POS & IBM 4683, PC Wedge, 1 Auxiliary Port, Tracks 1 and 2 Magnetic Stripe Reader with DB-9-Pin Squeeze Connector)

Need a different version of the Honeywell ScanTeam ST 8300 Check Reader? View all 3 configurations

Additional Information

Manufacturer AIDC	Honeywell
Model Name	ScanTeam ST 8300

Honeywell ScanTeam ST 8300 Specs (pdf)

Technical Information

MICR Font Supported:
- CMC-7
- E13-B
Magnetic Stripe Track Configuration: Dual Track
Magnetic Stripe Track Number:
- Track 1
- Track 2

General Information

Product Type: Check Reader
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: ST8300
Product Name: ST8300 MICR Check Reader
Product Line: SCANTEAM

Physical Characteristics

Height: 3.4"
Width: 4.7"
Depth: 5.8"
Color: White
Weight (Approximate): 1.25 lb

Interfaces/Ports

Interfaces/Ports:
- Keyboard Wedge
- RS-232 Serial

Other

Certifications & Standards:
- FCC Class A
- CE
- EMC 89/336/EEC
Additional Information:
- Scanner Port: Laser/CCD/Wand
- IBM 4683 POS Terminal Interface

Environmental Conditions

Humidity: 95% Non-condensing
Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -0.4°F (-18°C) to 140°F (60°C) Storage

Power Description

Input Voltage Range: 7 V DC to 13.5 V DC
Input Voltage: 5 V DC

Warranty

Limited Warranty: 2 Year
