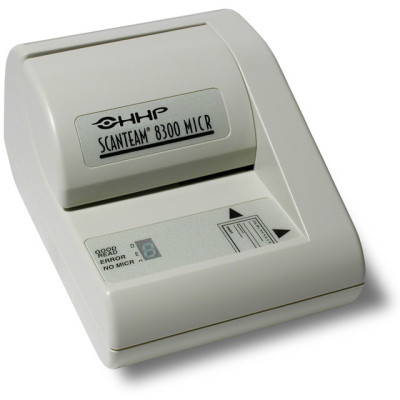

Honeywell ScanTeam ST 8300 Check Reader

Honeywell ScanTeam ST 8300 Check Reader

The SCANTEAM 8300 product line is a family of check reader products with various interface and decoding capabilities. All versions utilize a magnetic MICR read head and include a host system interface port. Versions of the product are available which support the direct connection to POS terminal I-O Ports integrated barcoded document reading numerous Keyboard wedge interfaces handheld scanner decoding integrated magnetic stripe reader and auxiliary RS-232 I-O ports. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product. The ST8300 products provide multiple options in meeting the data capture needs of retail and financial transaction systems. The ST8300 may be ordered with options which provide an integrated triple track mag stripe reader a barcode scanner port and two RS-232 ports for future peripherals such as PIN Pads or a Signature Capture Pad. The ST8300 is compatible with hundreds of POS and teller systems through the built in interface-wedge controller. The ST8300 typically operates from +5 volt or +12 volt power from the host device and does not require external power pack or connector blocks.
The ScanTeam ST 8300 product line is a family of check reader products with variousinterface and decoding capabilities. All versions utilize a magnetic MICR readhead and include a host system interface port. Versions of the product are availablewhich support the direct connection to POS terminal I/O Ports, integrated bar codeddocument reading, numerous keyboard wedge interfaces, hand held scanner decoding,integrated magnetic stripe reader, and auxiliary RS-232 I/O ports. All ScanTeam ST 8300products contain FLASH memory which allows for easy firmware upgrades in the fieldwithout the need to disassemble the product. The ScanTeam ST 8300 products provide multipleoptions in meeting the data capture needs of retail and financial transactionsystems.

The ScanTeam ST 8300 may be ordered with options which provide an integrated tripletrack mag stripe reader, a bar code scanner port, and two RS-232 ports for futureperipherals, such as PIN Pads or a Signature Capture Pad. The ST8300 is compatiblewith hundreds of POS and teller systems through the built in interface/wedgecontroller. The ScanTeam ST 8300 typically operates from +5 volt or +12 volt power fromthe host device and does not require external power pack or connector blocks.

Whats New
A bar code port is now standard on all ScanTeam ST 8300 models. The check feeding operationhas been improved to make it easier to feed damaged checks.

Extended Details
Refine Your Options
  1. Honeywell ScanTeam ST 8300 Check Reader
    Part #: 8300-4112 | SKU: HON4740

    SCANTEAM 8300 MICR Check Reader (Retail Interface - Serial RS-232, PC-POS & IBM 4683, PC Wedge, 1 Auxiliary Port, Tracks 1 and 2 Magnetic Stripe Reader with DB-9-Pin Squeeze Connector)
  2. Honeywell ScanTeam ST 8300 Check Reader
    Part #: 8300-4113 | SKU: HON4744

    8300 MICR Check Reader (with RS-232, IBM463, and PC Wedge Interfaces, Auxiliary Port, DB-9 Squeeze Connector and 3-Track MSR)
  3. Honeywell ScanTeam ST 8300 Check Reader
    Part #: 8300-2112 | SKU: HON31721

    MICR Check Reader; Non-IBM, Commercial 1 RS-232 Auxiliary Port, 1&2 MSR

3 Item(s)

Recommended Accessories for Model: Honeywell ScanTeam ST 8300 Check Reader

  • Honeywell Check Reader Accessory
    Part #: MSRCLEAN | SKU: HON29950

    MSR head cleaning cards (pack of 10), for 6901, 6920, 8300, 8310
    Price: $22.08
  • Honeywell Check Reader Accessory
    Part #: 42205021-01E | SKU: HON28304

    Cable for the 2010, 2070, 8300, 8310 and 8400; 3 feet, Mini Din, 6-Pin M/F. RoHS Compliant.
    Price: $23.63
  • Honeywell Check Reader Accessory
    Part #: 42205127-04 | SKU: HON60477

    Intermec Serial cable - DB-9 Female Serial - 4ft
    MSRP: $37.00 Price: $31.03
  • Honeywell Check Reader Accessory
    Part #: 42205021-01 | SKU: HON4745

    Mini DIN Cable for the 2010, 2070, 8300, 8310, 8400
  • Honeywell Check Reader Accessory
    Part #: PS120/9V | SKU: HON4750

    PS120 Power Suppy (9 Volt) for the 8300, 8310 and 8400
