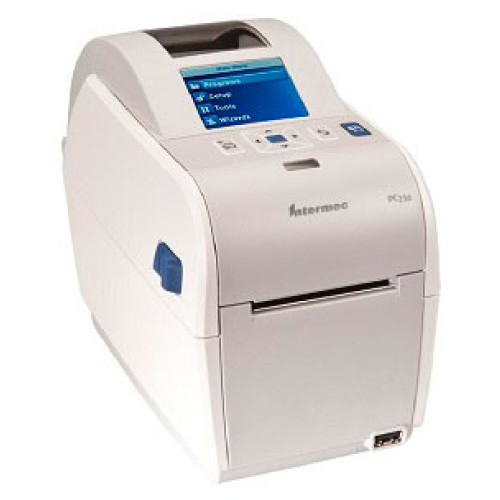

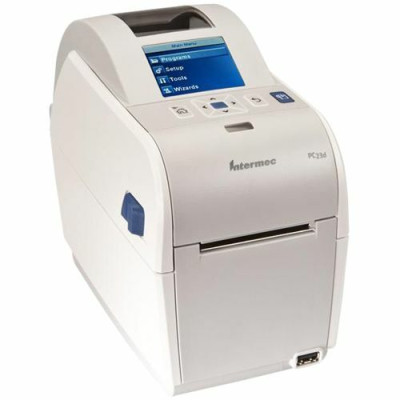

Honeywell EasyCoder PC23d Barcode Label Printer

Honeywell EasyCoder PC23d Barcode Label Printer

Super easy to install and use, the highly compact Intermec EasyCoder PC23d is a purpose-built platform with an innovative design guided from customer input. The EasyCoder PC23d 2"-wide desktop printer is perfect for space-constrained settings, and offers tailored solutions for healthcare, as well as small and medium business-manufacturing environments.

Starting at: MSRP: $641.92 Price: $421.85

See all options

Specs & Info
All Options

Honeywell EasyCoder PC23d Driver (download)

Interfaces

Standard: USB Device Type B connector v.2.0 high speed, USB Host Type A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual radio module (802.11 b/g/n and Bluetooth® V2.1), USB to Serial adapter (RS-232), USB to Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons (cover open, paper out), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Prototocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Physical Characteristics

Height: 177 mm (6.9 in)
Width: 125 mm (4.9 in)
Depth: 215 mm (8.5 in)
Weight: 1.45 kg (3.20 lbs)

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width: 60 mm (2.36 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, 300 dpi, Printer Case Lock

Software

Printer Command Languages:
• C# for Printers
• IPL
• Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec Certified Device Types for SAP®
• Intermec label design and print package

Smart Printing Languages:
C# for Printers
• Smart Printing Developer Resource Kit
• Write apps with .NET-compatible development environments
Intermec Fingerprint
• Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche™

Extended Details

Refine Your Options

Shop By

Printing Technology

Direct Thermal (9)

Print Resolution

Print Speed

Display Type

LCD (3)

Interface Options

Printer Type

Desktop (9)

Honeywell PC23DA0010031 Barcode Label Printer
Part #: PC23DA0010031 | SKU: HON163750

Desktop Printer - Intermec EasyCoder PC23d - Direct Thermal - 300 dpi - 6ips - LCD/Real-time Clock - USB - LCD Display - US Power Cord

MSRP: $972.41 Price: $627.60
Honeywell PC23DA0010021 Barcode Label Printer
Part #: PC23DA0010021 | SKU: HON163749

Desktop Printer - Intermec EasyCoder PC23d - Direct Thermal - 203 dpi - 8ips - LCD/Real-time Clock - USB - LCD Display - US Power Cord

MSRP: $641.92 Price: $421.85
Honeywell PC23DA0010022 Barcode Label Printer
Part #: PC23DA0010022 | SKU: HON595624

Desktop Printer - Honeywell PC23d - Direct Thermal - 203 dpi - 8ips - Real-time Clock - Bluetooth/WiFi/USB/USB Host - European Power Cord

MSRP: $693.41 Price: $458.06
Intermec PC23DA0000021 Barcode Label Printer
Part #: PC23DA0000021 | SKU: INT163747

EasyCoder PC23d, Printer, Icon, 203 dpi, Americas Power cord. Great for Pharmacy Pill Bottle Labeling, Laboratory Slide Labeling, and Medical Wristbands.
Intermec PC23DA0000031 Barcode Label Printer
Part #: PC23DA0000031 | SKU: INT163748

EasyCoder PC23d, Direct thermal Desktop Printer, Icon, 305 dpi, Americas Power cord. Great for Pharmacy Pill Bottle Labeling, Laboratory Slide Labeling, and Medical Wristbands.
Intermec PC23DA1010021 Barcode Label Printer
Part #: PC23DA1010021 | SKU: INT195882

EasyCoder PC23d, PC23D PRINTER, 2" DIRECT THERMAL DESKTOP WITH ASIAN AND LATIN AMERICAN. Great for Pharmacy Pill Bottle Labeling, Laboratory Slide Labeling, and Medical Wristbands.
Honeywell PC23DA0110021 Barcode Label Printer
Part #: PC23DA0110021 | SKU: HON335636

Desktop Printer - Intermec EasyCoder PC23d - Direct Thermal - 203 dpi - 8ips - LCD - Ethernet/USB Host/USB - LCD Display - US Power Cord
Intermec PC23DA0100021 Barcode Label Printer
Part #: PC23DA0100021 | SKU: INT337890

Desktop Printer - Intermec EasyCoder PC23d - Direct Thermal - 203 dpi - 8ips - LCD/Real-time Clock - Ethernet/USB Host/USB - US Power Cord
Intermec PC23DA0000022 Barcode Label Printer
Part #: PC23DA0000022 | SKU: INT248150

2" DESKTOP DIRECT THERMAL PRINTER, ICON GRAPHIC, 203 DPI, LATIN FONT, EU
