Intermec PC23DA0000022 Barcode Label Printer Intermec PC23DA0000022 Barcode Label Printer Intermec PC23DA0000022 Barcode Label Printer

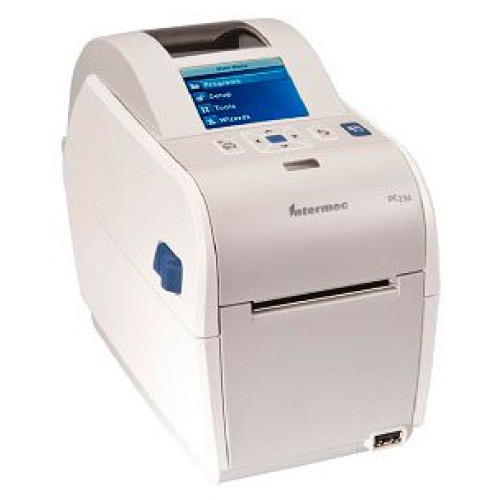

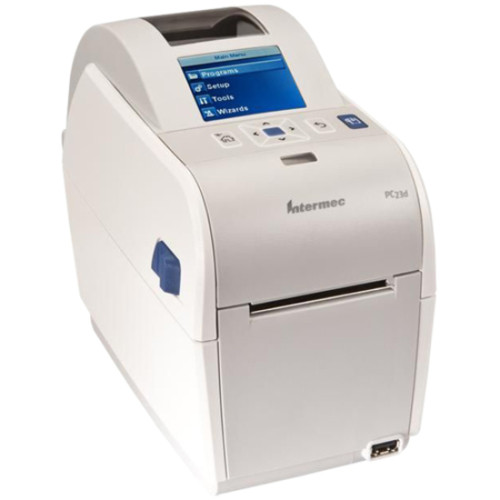

Intermec PC23DA0000022 Barcode Label Printer
Part #: PC23DA0000022 | SKU: INT248150

Super easy to install and use, the highly compact Intermec EasyCoder PC23d is a purpose-built platform with an innovative design guided from customer input. The EasyCoder PC23d 2"-wide desktop printer is perfect for space-constrained settings, and offers tailored solutions for healthcare, as well as small and medium business-manufacturing environments.

Intermec PC23DA0000022 Barcode Label Printer

Part Details: 2" DESKTOP DIRECT THERMAL PRINTER, ICON GRAPHIC, 203 DPI, LATIN FONT, EU
Need a different version of the Honeywell EasyCoder PC23d Barcode Label Printer? View all 9 configurations

Additional Information

Interface Options USB
Manufacturer Intermec
Max Roll Outer Diameter 5
Model Name EasyCoder PC23d
Print Resolution 203 dpi
Print Speed 8 ips
Printer Type Desktop
Printing Technology Direct Thermal
Intermec EasyCoder PC23d Specs Intermec EasyCoder PC23d Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Icon-graphics
  • Barcode Symbology Supported:
    • Aztec Code
    • Code 16K
    • Code 49
    • Data Matrix
    • EAN-13
    • EAN-8
    • EAN.UCC 128
    • Grid Matrix
    • HIBC Code 128
    • HIBC Code 39
    • Maxi Code
    • MSI
    • PDF-417
    • Micro PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • QR Code
    • RSS-14

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PC
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PC23d
  • Product Name: PC23d Desktop Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 4.9"
  • Depth: 8.5"
  • Form Factor: Desktop
  • Weight (Approximate): 3.20 lb

Interfaces/Ports

  • USB: Yes

Media Types & Handling

  • Maximum Label Width: 2.40"
  • Maximum Label Length: 68"
  • Media Type:
    • Tag
    • Linerless
    • Self Adhesive Label
    • Continuous Paper
    • Floodcoat
    • Non-adhesive Tag
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • E-Sim

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DDR2 SDRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 2.4"

Other

  • Platform Supported: PC

Power Description

  • Power Source: Power Adapter
Extended Details
