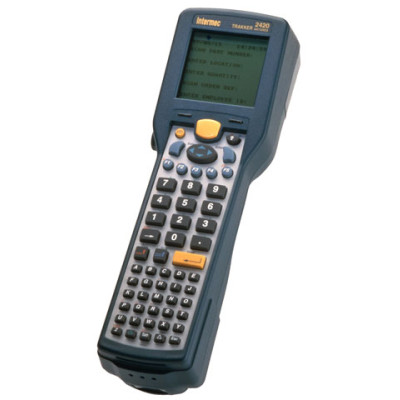

Intermec Trakker Antares T2420 Mobile Computer

Intermec Trakker Antares T2420 Mobile Computer

Intermec Trakker Antares T2420 Mobile Computer

Rugged and economically priced the 2420 Handheld Terminal is full-featured and suited to batch or off-line applications such as inventory control asset management item tracking maintenance management and other off-line data collection applications. Featuring a large display and full keypad and supporting a variety of scanners and memory configurations the 2420 delivers functionality and ease of use even in the most demanding environments. With no proprietary languages to learn and support you're in control of the applications that can be developed for the 2420 using industry standard language tools. The task is even quicker with EZBuilderT a rapid application development and prototyping tool that requires no programming language expertise at all. Fast data communications to a PC or host are also supported through either a portable serial adapter a desktop communications dock or internal modem. With its Lithium Ion main batteries - typically found in more expensive computers and laptop PCs - data can be collected for a normal shift or longer without a battery change. Recharge them gradually while the--terminal is in the communications dock or quickly in a convenient multi-pack charger. Data will be saved for days in the event the main battery is temporarily or accidentally removed. An internal modem option provides remote dial-up access at speeds up to 33.6 Kbps.Standard memory and non-volatile storage will satisfy most application requirements. For larger files or portable databases add 2 or 4MB memory expansion options. Transform the 2420 to a wireless terminal easily with a wireless module. Integrated scanners are replaceable modules for easier maintenance. An internal modem module or 2 or 4 MB memory expansion option pistol grip handle and serial communications dock are available.
Discontinued - Need Assistance
See all options
Intermec Trakker Antares T2420 Specs Intermec Trakker Antares T2420 Specs (pdf)

__($mfg->name) Trakker Antares T2420 Handheld Computer(Antares)

  • Backlit display, full keypad and multiple scanning options
  • Ergonomic design
  • Upgradable to RF to protect your investment
  • Industry standard tools and program generator
  • Long life battery and convenient communications accessories

The __($mfg->name) Trakker Antares T2420 is a full-featured terminal suited to inventory control, asset management, item tracking, maintenance management and other off-line data collection applications. Built to last, it will survive the repeated drops and rough environmental conditions found in manufacturing, distribution, health care and other demanding uses.

Applications can be developed using industry standard language tools; no proprietary languages to learn and support. The task is even quicker with EZBuilder™, a rapid application development and prototyping tool that requires no programming language expertise at all. Fast data communications to a PC or host are supported either through a portable serial adapter or a desktop communications dock.

With its Lithium Ion main batteries - normally found in more expensive computers and laptop PCs—data can be collected for a normal shift or longer without a battery change. Recharge them gradually while the terminal is in the communications dock or quickly in a convenient multi-pack charger. Data will be saved for days in the event the main battery is temporarily or accidentally removed. An internal modem option provides remote dial-up access at speeds up to 33.6 Kbps.

Standard memory and non-volatile storage will satisfy most application requirements. For larger files or portable data bases, add 2 or 4MB memory expansion options. Easily transform the 2420 to a wireless terminal. Integrated scanners are replaceable modules for easier maintenance.

And the 2420 is a part of Intermec’s 2400 family of fully compatible hand-held, vehicle mount and stationary shop floor terminals.

Physical Characteristics Length: 26.9 cm (10.6") Width: 8.2 cm (3.2") at scanner, 6.4 cm (2.5") at grip Height: 7.1 cm (2.8") at scanner, 5.7 cm (2.3") at grip Weight: 620 g (22 oz.) including battery

Environment Operating: -20° to 50°C (-4°F to 122°F) Storage: -20° to 60°C (-4°F to 140°F) for less than two weeks Humidity: Non-condensing (0 to 95% RH) Shock and vibration protection: Warrented for 5-foot drop to concrete

Power Operating: Lithium Ion battery pack Memory Backup: Rechargeable NiCad

Memory RAM Memory: 1MB Non-volatile Memory: 2MB Additional 2MB (4MB total) optional Extended Memory: 2MB or 4MB SRAM (not available with modem option)

Interfaces

  • Optical (sealed) serial interface
  • RS232-C up to 38.4 baud
  • XMODEM, YMODEM for data transfer
  • Supports Configurable Serial Protocol and XON/XOFF

Display

  • CGA compatible backlit LCD displaying 16 lines of 20 characters per line (128 x 160 dot matrix) plus graphic status icons

Keyboard Elastomeric 56-key with full alphanumeric set, function keys and oversized numeric

Bar code Symbologies Code 39, 2 of 5, Interleaved 2 of 5, Codabar, UPC/EAN Code 128, Code 11, Code 93, Plessey, MSI, PDF-417

Bar code Scanning Options Integrated visible laser diode scanner USA/Canada Class II, International Class 2

Depth of Field*-Standard Range(670nm) 5 mil 9.4-15.7cm 3.7-6.2" 10 mil 7.4-35.3cm 2.9-13.9" 20 mil 10.2-63.5cm 4-25" 30 mil 10.2-86.4cm 4-34" 40 mil 12.7-99cm 5-39" 55 mil 19.1-126cm 7.5-49" 55 mil retroreflective 105-151cm 41-59" 100 mil retroreflective 113-227cm 44-89" * measured for Code 39

Depth of Field-Long Range (650nm) 5 mil 29.5-49.8cm 11.6-19.6" 10 mil 21.8-85.3cm 8.6-33.6" 20 mil 21.8-98cm 8.6-38.6" 30 mil 24.4-192cm 9.6-75.6" 40 mil 24.4-204.7cm 9.6-80.6" 70 mil retroreflective 192-410.5cm 76.6-161.6" 100 mil retroreflective 212.3-532.4cm 83.6-209.6"

  • High density PDF 417 and High Visibility option available
  • Optional adapter module with 10-pin connector for use with Intermec cabled scanners and wands

__($mfg->name) Trakker Antares T2420 Integrated Modem Option

  • 33.6 Kbps transfer rate RJ11 connector and cable (6ft/2m)
  • Operating: 0-50°C, 32-104°F
  • Regulatory: UL Listed & C22.2 No.950

FCC Parts 15 & 68. Canada ICES-003 & CS03.

  • SRAM expansion and RF upgradability not available with modem option.

RF Upgradable Can be retrofitted with integrated RF module Frequency: 2.4 GHz frequency band, actual frequencies in use vary by country WLI Forum OpenAir Type: Frequency Hopping Spread Spectrum Data Rate: 1.6 Mbps, .8 Mbps fallback Range*: From 1500+ ft (450+ m) to 500 ft (150 m) depending on environment IEEE 802.11b Wi-Fi Certified Type: Direct Sequence Spread Spectrum Data Rate: 11/5.5/2/1 Mbps with Auto fallback for increased range Range* at 1 Mbps: From 1750 ft (533 m) to 165 ft (50 m) depending on environment Range* at 11 Mbps: From 525 ft (160 m) to 80 ft (24 m) depending on environment Security: Wired Equivalent Privacy (WEP) - 64 or 126 bit encryption

  • Unlimited range with roaming

__($mfg->name) Trakker Antares T2420 Accessories Handstrap, holster, belt clip, pistol grip handle, vehicle mount holder, battery charger, battery pack, serial adapter and communications dock, User Manual, Programmer’s Software Kit(PSK), EZBuilder™ Rapid Application Development software

Regulatory Approvals UL Listed, UL 1950 and C22.2 No. 950, TÜV Rheinland GS, EN 60950 and EN 60825-1, FCC Part 15, Canada, RSS210 and ICES-003, Class B, EN 55022 / CISPR 22, Class B, ETS 300 328, ETS 300 339, Compliant with all European Directives, CE marked
