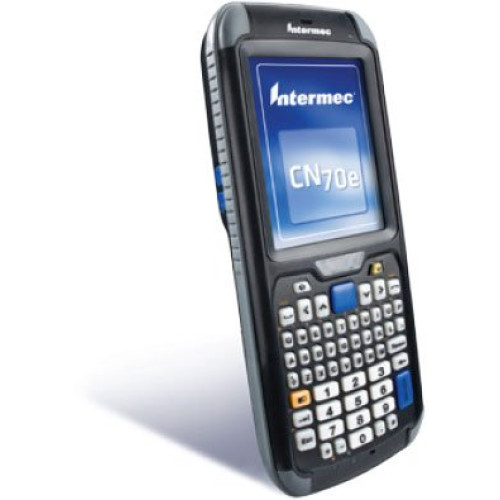

Intermec CN70EQ2KCD5W3100 Mobile Computer

Intermec CN70EQ2KCD5W3100 Mobile Computer
Part #: CN70EQ2KCD5W3100 | SKU: INT106792

  • Power-packed mobile computing in terms of size, weight and ruggedness
  • Superior computing performance and application response time
  • Flexible radio technology provides optimal network coverage and a superior solution for implementing least cost routing strategies
  • Exceptional battery life for long device run time without extra size and weight
  • Advanced bar code imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates
  • Brilliant display with extended life touch panel
  • On-board diagnostics provides device health visibility and reduces downtime
  • Full compatibility with printers, application software, communications, and a complete set of peripherals and accessories enabling a comprehensive enterprise business solution
  • Non-Incendive option for hazardous locations CN70 and CN70e

Intermec CN70EQ2KCD5W3100 Mobile Computer

Part Details: CN70e, Windows Embedded Handheld OS, WWE, Numeric/QWERTY keypad, 2D Area Imager, Color Camera, CDMA Sprint [D5], 512MB RAM/1GB Flash, Dual-Band 802.11n WLAN, Bluetooth and Battery Pack. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
Need a different version of the Intermec CN70e Mobile Computer? View all 24 configurations

Additional Information

Manufacturer AIDC Intermec
Model Name CN70e
Style Phone-size
Intermec CN70e Specs Intermec CN70e Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 94.49" To Concrete
    • 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

Physical Characteristics

  • Width: 3.1"
  • Depth: 1.3"
  • Length: 7.7"
  • Weight (Approximate): 1.08 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Country of Origin: Malaysia
  • Package Contents:
    • CN70e Handheld Terminal
    • Battery
    • CN70e Handheld Terminal
    • Battery
  • Certifications & Standards:
    • IP67
    • IEC 60068-2-32
    • MIL-STD 810G
    • CCXv4
    • 1000CP01
    • 1000CP01U
    • 1000CP01C
    • Safety:
    • cULus
    • DEMKO
    • BSMI
    • EMC:
    • Class B - FCC/ICES/EN
    • GOST-R
    • Radio:
    • FCC w/HAC
    • Industry Canada
    • CE 0981
    • A-tick (AU)
    • C-tick (NZ)
    • NCC
    • OFTA
    • IDA
    • ICASA
    • POSTEL
    • NTC
    • ETA
    • SIRIM
    • ANATEL
    • 61 Countries in Total

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: CDMA
  • Network Band: Dual Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology: EVDO
  • Wireless Security:
    • WPA
    • WPA2
    • WAPI
    • 802.1x
    • WEP (64 or 128 bit)
    • AES
    • TKIP

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 480 x 640

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz
  • Processor Type: OMAP

Battery Information

  • Battery Capacity: 4000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5
