Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner Metrologic MK9520-32A47 Barcode Scanner

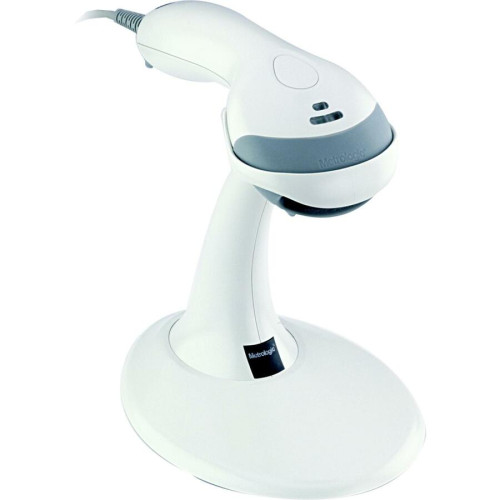

Metrologic MK9520-32A47 Barcode Scanner
Part #: MK9520-32A47 | SKU: MET25585

With a futuristic design and high-performance scanning technology the MS9520 is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a hand-held and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS9520 Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.

Metrologic MK9520-32A47 Barcode Scanner

Part Details: MS9520 Voyager, PS/2 kit, 1D Laser. Includes PS/2 coiled cable and stand. Color: Black.
Need a different version of the Metrologic MS9520 Voyager Barcode Scanner? View all 22 configurations

Additional Information

Connectivity Corded
Form Factor Handheld
Included Cables AT/PS2 Keyboard Wedge
Interface Options PS/2 Keyboard Wedge
Manufacturer Metrologic
Model Name MS9520 Voyager
Scanner Capability 1D
Scanner Type CCD, Imager
Metrologic MS9520 Voyager Specs Metrologic MS9520 Voyager Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS
    • All Standard 1D Symbologies
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 7"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9520
  • Product Name: Voyager MS9520 Barcode Reader
  • Product Line: Voyager

Physical Characteristics

  • Height: 7.8"
  • Width: 1.8"
  • Depth: 1.6"
  • Color: Black
  • Weight (Approximate): 5.26 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Voyager MS9520 Barcode Reader
    • Cable
    • Stand
    • Voyager MS9520 Barcode Reader
    • Cable
    • Stand
  • Certifications & Standards:
    • RoHS Compliant
    • Laser Class:
    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
    • EMC:
    • FCC Class B
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • OCIA
    • IBM 468X/469X
    • USB

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories for Model: Metrologic MK9520-32A47 Barcode Scanner

  • Honeywell 53-53000-3 Cables, Connectors, and Adapters
    Part #: 53-53000-3 | SKU: HON83333

    RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>
    Price: $19.23
    In Stock

  • Honeywell 53-53235-N-3 Cables, Connectors, and Adapters
    Part #: 53-53235-N-3 | SKU: HON83408

    9.5' Coiled USB Cable. Type A connector. Color: Black.
    MSRP: $33.20 Price: $27.67
    In Stock

  • Honeywell STND-23R03-006-4 Accessory
    Part #: STND-23R03-006-4 | SKU: HON141411

    Scanner Stand, 23cm (9") stand height, rigid rod, weighted mid-sized universal base, Hyperion 1300 sliding cradle
    MSRP: $56.96 Price: $41.81
    In Stock

  • Honeywell HOLDER-004-U Accessory
    Part #: HOLDER-004-U | SKU: HON121107

    Universal Stand, Desktop/wall mount holder for Voyager 1200G. Non-Cancelable/Non-Returnable.
    MSRP: $32.28 Price: $26.94
    In Stock

  • Honeywell 46-00525-6 Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell Scanners
    MSRP: $67.06 Price: $47.45
    In Stock
View All Options

Recommended Warranties for Model: Metrologic MK9520-32A47 Barcode Scanner

  • Honeywell SVC9520-1LC5 Service Contract
    Part #: SVC9520-1LC5 | SKU: HON363492

    Honeywell Limited Comprehensive - 5 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Electronic, Physical Service
    MSRP: $37.80 Price: $30.53
    In Stock

  • Honeywell HHSCAN1-REPAIR Service Contract
    Part #: HHSCAN1-REPAIR | SKU: HON402769

    Flat Rate Repair fee for 9590, 9520, 9540, 5145, 4206, 3800, 3200, 3780, 1200, 1250, and 1300. This charge is for any required repair not covered by warranty or comprehensive service.
