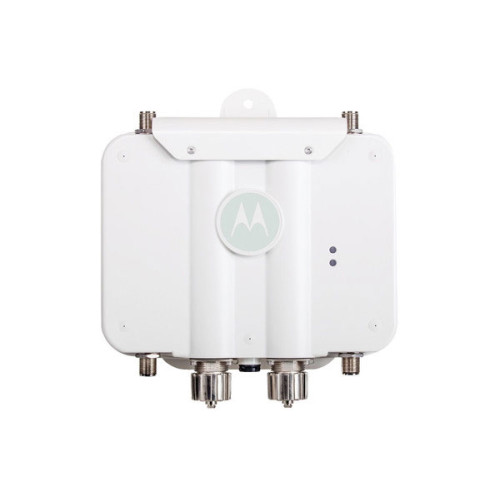

Motorola AP 6562 Wireless Access Points

Shock and vibration

Operational shock: IEC60721-3-4, Class 4M3, MIL STD 810F Operational vibration: IEC60721-3-4, Class 4M3

Storage altitude

30, 000 ft

Operating humidity

5 to 95% RH, non-condensing

Operating temperature

-30 to +60°C

Electrostatic discharge

EN61000-4-2. Air +/-15kV, Contact +/-8kV

Operating altitude

8, 000 ft

Storage temperature

-40 to 85°C

Integrated power over ethernet support

802.3at draft power injector

Operating voltage

36-57 VDC

Operating bands - FCC

2412 to 2472 MHz and 2484 MHz, 5180 to 5825 MHz

Maximum available transmit power

2.4GHz: 21dBm per chain, 5.0GHz: 20dBm per chain

Uplink

Auto-sensing 10/100/1000Base-T Ethernet

Wireless medium

Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing(OFDM), and Spatial Multiplexing (MIMO)

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11n: MCS 0-15 up to 300Mbps

Transmit power adjustment

1dB increment

Operating channels

Radio 1: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only Radio 2: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only 5GHz:All channels from 5200 MHz to 5825 MHz Actual operating frequenciesdepend on national regulatory limits

VLANs/WLANs supported

VLANs and WLANs are controller-dependent

Network standards

802.11a, 802.11b, 802.11g, 802.11n

Antenna configurations

1x1, 1x2, 2x2
