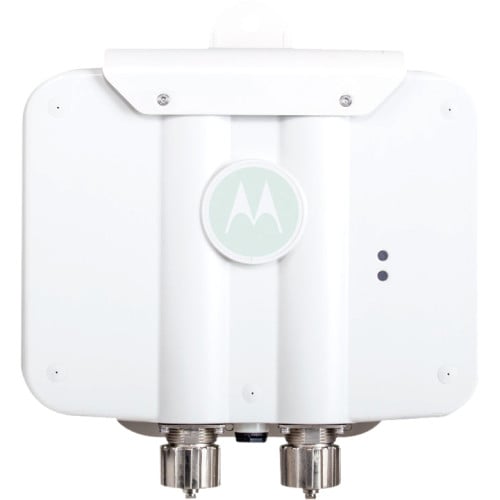

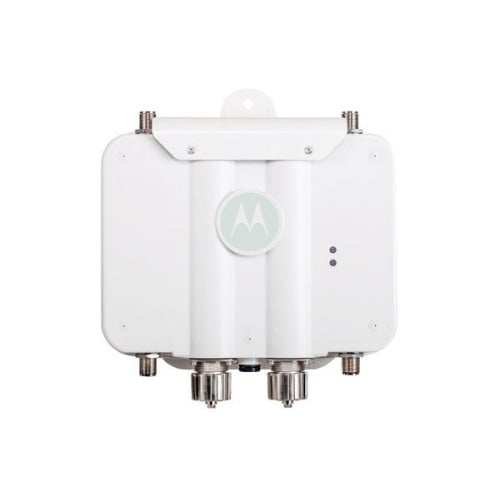

Motorola AP-6562-66030-US Wireless Access Points
Part #: AP-6562-66030-US | SKU: MOT213564

Designed for extending Wi-Fi coverage to outdoor areas, the AP 6562 provides a cost-effective means of supporting the most demanding wireless applications and large number of wireless devices. Ideal for distribution centers, hospitality, retail, and education campuses, the AP 6562 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network.

Motorola AP-6562-66030-US Wireless Access Points

Part Details: 802.11n Access Point - Dual Radio - Outdoor - Intenral Antenna

Need a different version of the Motorola AP 6562 Wireless Access Points? View all 10 configurations

Additional Information

Manufacturer	Motorola
Model Name	AP 6562
Wireless Type	Wi-Fi, Wi-Fi 4: 802.11n

Motorola AP 6562 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.18 GHz
Antenna Gain:
- 3 dBi
- 5 dBi
- 6 dBi
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.48 GHz
UNII Maximum Frequency: 5.83 GHz
Features:
- Quality of Service (QoS)
- MIMO Technology
Wireless Security: Wireless IPS

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP 6562
Product Name: Outdoor Dual Radio 802.11a/b/g/n Mesh Wireless Access Point

Physical Characteristics

Height: 9.8"
Width: 9.1"
Depth: 2.6"
Form Factor:
- Wall Mountable
- Pole-mountable
Weight (Approximate): 2.90 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
PoE (RJ-45) Port: No
USB: No
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: Yes

Other

Certifications & Standards:
- Regulatory:
- UL 60950
- cUL
- EU EN 60950
- TUV
- UL 2043
- Radio Approvals:
- FCC
- CE
- TELEC
- IEEE Standards:
- 802.11g
- 802.11a
- 802.11n
- 802.11b
- 802.3at

Warranty

Limited Warranty: 1 Year

Power Description

Power Source: PoE

Extended Details

Barcode Discount

Motorola AP-6562-66030-US Wireless Access Points Part #: AP-6562-66030-US | SKU: MOT213564
