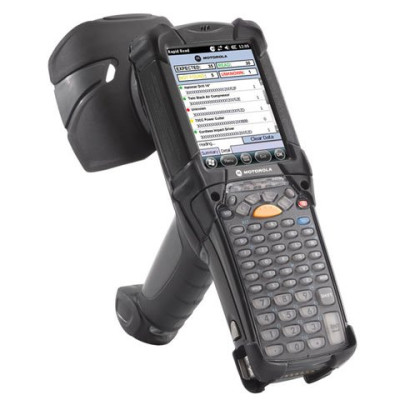

Motorola MC9190-Z RFID Reader

Application Development

PSDK, DCP and SMDK available through Motorola Developer Zone Web site

Communications

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Antenna
Internal

Output power
100 mW international

Frequency range1
802.11a – 5.0 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps

WLAN
IEEE 802.11a/b/g

Performance characteristics

Memory
256 MB/1 GB

Operating system (OS)
Microsoft Windows Mobile 6.5 Professional

Physical characteristics

Keyboard
28, 43 and 53-key options

Dimensions (HxWxD)
10.75 x 4.7 x 7.7 in
(27.3 x 11.9 x 19.5 cm)

Weight
34.35 oz / 2.147 lbs including battery
(973.8 g / .986 kg including battery)

RFID

RFID output power
EU: 2 Watt ERP; US: 3 Watt EIRP

Antenna
Integrated, linearly polarized

Nominal write range
up to 4 ft (1.22 m)

Standards supported
EPC Gen 2 DRM for output

Frequency range
EU: 865-868MHz; US: 902-928MHz

Field
70-degree cone (approx.) measured from nose of device

Nominal read range
up to 30 ft (9.14 m)

Regulatory specifications

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User environment

Ambient lighting tolerance2
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Environmental sealing
IP64 (electronic enclosure, display, keypad)

Drop specification
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range

Storage temperature
-40° F to 158° F
(-40° C to 70° C)

Operating temperature
-4° F to 122° F
(-20° C to 50° C)

Electrostatic discharge (ESD)
+/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge

Tumble specifications
2, 000 one-meter tumbles at room temperature (4, 000 hits)

Humidity
5% to 95% non-condensing

Charging temperature
32° F to 104° F
(0° C to 40° C)

CPU
Marvell PXA320 processor at 806 MHz
