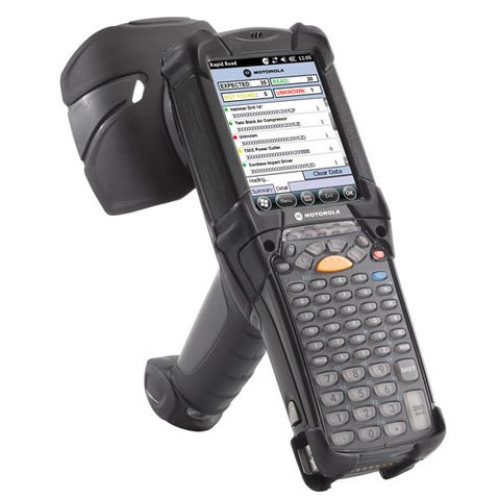

Motorola MC919Z-G30SWEQZ2EU RFID Reader Motorola MC919Z-G30SWEQZ2EU RFID Reader

Motorola MC919Z-G30SWEQZ2EU RFID Reader
Part #: MC919Z-G30SWEQZ2EU | SKU: MOT207720

The MC9190-Z is a high-performance, highly rugged RFID handheld reader targeted for use in very demanding applications and environments. Designed for medium- to long-range RFID read applications, the MC9190-Z delivers best-in-class RFID read range and accuracy in an ergonomic, integrated RFID and bar code device. Its rugged form factor excels in virtually any environment, indoors or outdoors.

Motorola MC919Z-G30SWEQZ2EU RFID Reader

Part Details: UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 2D Imager - Windows Mobile 6.5 - 53 key Keypad - 256MB RAM / 1GB Flash - Color - ETSI 302-208 - Cables and Charging Cradle Not Included
Need a different version of the Motorola MC9190-Z RFID Reader? View all 7 configurations

Additional Information

Frequency UHF
Keypad Alphanumeric
Manufacturer AIDC Motorola
Model Name MC9190-Z
Operating System Windows Mobile 6.5
RAM Memory 256 MB
Scanner Type Imager
Style Handheld
Motorola MC9190-Z Specs Motorola MC9190-Z Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-Z
  • Product Name: MC9190-Z Handheld RFID Reader

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.15 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS CHAP
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • PEAP EAP-GTC
    • LEAP
    • EAP-FAST TLS
    • EAP-FAST (MS-CHAPv2)
    • EAP-FAST EAP-GTC
    • WPA2/AES
    • CCX v4
    • FIPS 140-2

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

RFID

  • Maximum Read Distance: 30 ft
  • Maximum Write Distance: 48"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 868 MHz
  • Minimum Operating Frequency: 865 MHz

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Touchscreen Information

  • Touchscreen: Yes
Extended Details
