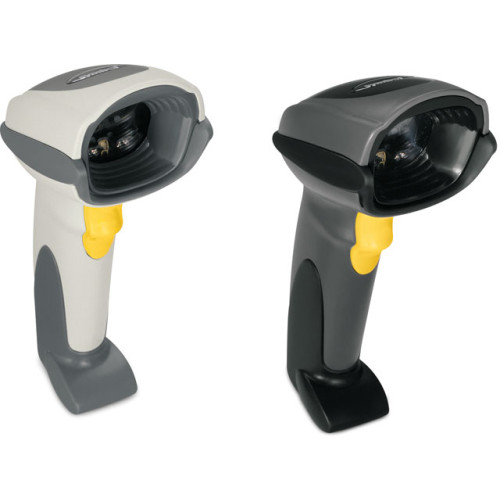

Symbol DS6700 Series Barcode Scanner

Imaging characteristics

Image resolution (pixels)
1.3 Megapixel: 1280 pixels H x 1024 pixels V

Graphics formats supported
Bitmap, JPEG, TIFF

Notices and disclaimers

See footnote¹

Performance characteristics

Depth of field
SR - Standard range: 34° V x 43° H / DC - Document capture: 35° V x 44° H

Pitch³
SR - Standard range: ±65°DC - Document capture: ±65°

Decode capability
1-D/2-D/PDF417

Scan pattern
Omnidirectional

Roll (tilt)²
SR - Standard range: 360°DC - Document capture: 360°

Skew (yaw)⁴
SR - Standard range: ±60°DC - Document capture: ±60°

Interfaces supported
IBM, Keyboard wedge, RS-232, Interfaces vary per model; see datasheet for details

Technology
Imager

Physical characteristics

Dimensions
6.55 in. H x 4.72 in. L x 2.82 in. W16.6 cm H x 11.9 cm L x 7.1 cm W

Voltage and current⁴
5 +/-10%VDC @ 350 mA

Handheld
Yes

Weight
6.4 oz. (182 gm)

Color

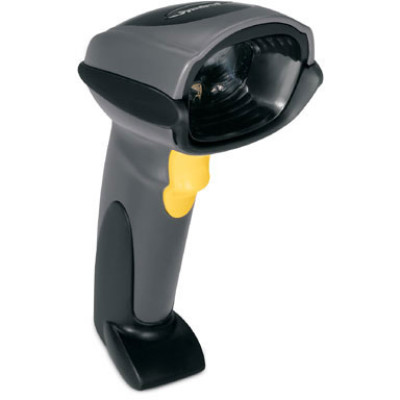

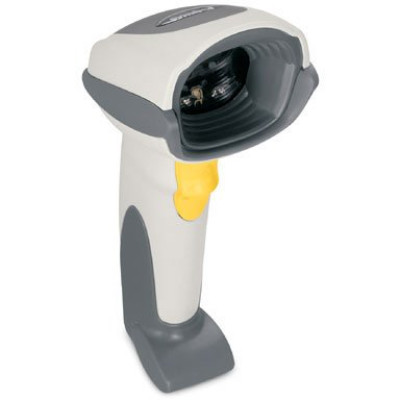

Twilight black, Cash register white

Corded
Yes

Regulatory specifications

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

EMI/RFI
IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B

Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

Environmental
RoHS Directive 2002/95/EEC

User environment

Operating temperature
32° to 122° F / 0° to 50° C

Drop specifications
Withstands multiple 6 ft. (1.8m) drops to concrete

Environmental sealing
IP41

Storage temperature
-40° to 158° F / -40° to 70° C

Ambient lighting tolerance
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
