Symbol LS 1220 Fixed Mount Barcode Scanners

Symbol Mini Scan Series A newer version of this item is available.
It is replaced by the Symbol Mini Scan Series.

On line fixed mount scanning to meet all of your industrial scanning needs

The MiniScan combines compact durable construction with Symbol's proven scanning technology for a rugged reliable fixed-mount scanner that can also be used as an embedded module. Available in standard or long-range working distances for additional flexibility MiniScan is the right choice for applications requiring accurate unattended automated data entry.
  • A rugged, reliable fixed-mount scanner
  • Available as a rugged embedded module
  • Both standard and long range working distances
  • Great choice for unattended automated data entry
  • Outstanding first-read rates
  • Provides superior laser performance
LS 1220 Options

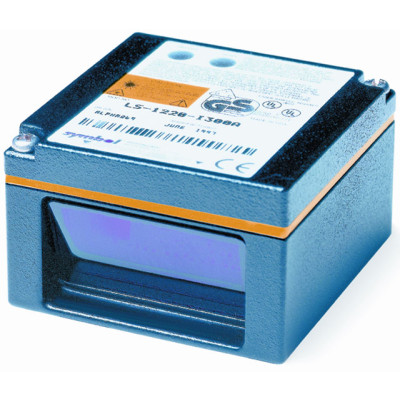

Symbol LS 1220 (LS-1220-I300A)
LS 1220, The LS1220 Scan Module (Miniscan, Fixed Mount with SE1200 Scan Engine)
Specs: Laser - Fixed Mount Scanner
Recommended Accessories
Motorola (50-16000-182R)
Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
In Stock: Ships Today
$12.80
+ Add to Quote
Motorola (23844-00-00R)
US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
In Stock: Ships Today
$15.70
+ Add to Quote
Symbol (25-04950-01R)
Cable assembly (push button and trigger cable) for MiniScan series
In Stock: Ships Today
$44.70
+ Add to Quote

Symbol LS 1220 Details

Big Performance, Small Size for Fixed-Mount or Embedded Scanning Applications

The LS 1220 series from Symbol Technologies provides the easiest and most flexible integration of barcode scanning into your host device. Symbol packs compact, durable construction with proven scanning technology, delivering a reliable fixed-mount or embedded scanner.

The LS 1220 features superior performance and durability in a compact form factor that easily integrates into portable or fixed-mount OEM devices at an affordable price. The LS 1220 is available in three models for additional flexibility—standard, wide angle (WA), or very high-density (VHD) versions. Featuring a die-cast metal housing with mounting features, the LS 1220 is the right choice for OEM devices requiring accurate unattended automated data entry.

Reliable High-Quality Scanning, Low Power Consumption

The superior scanning performance and sophisticated decoding algorithms for all major barcode symbologies ensure that the LS 1220 scanners deliver the highest rate of first-time read accuracy. A Mylar® scan element resonates at a fixed frequency for motion without wear and tear. That translates into operation that is virtually nonstop and unmatched in reliability and dependability.

LS 1220 offer the industry's lowest power consumption—the result of our patented Mylar scan element. Additional features include RS 232 output, "scan" and "good decode" LED indicators, barcode programming menus for easy set-up, host and external trigger options, your choice of models to best meet your needs, and a variety of optional accessories.

MiniScan Applications

The LS 1220 Wide Angle scan engine features a broad 60° scan angle to accommodate larger barcodes at or near contact. The LS 1220WA is ideal for high-volume, near-contact scanning such as kiosks, ATMs, lottery machines and other applications that require superior scanning performance in a complete package. The LS 1220 scan modules are also ideal for embedded applications such as: chemical and blood analyzers; automated medical, test and processing equipment; and many other automated data entry devices including lottery terminals. When used as a fixed-mount scanner, the LS 1220 modules are ideal for library, document tracking, manufacturing and warehousing applications.

The LS 1220 Very High Density scan engine reads printed symbols with element widths as narrow as 3 to 5 mm. In fact the LS 1220VHD is so accurate it even delivers reliable scanning performance on symbols as small as 2 mm. The LS 1220VHD is a great fit for circuit board manufacturing, small-item retail and pharmaceutical marking applications. Optimized for high-density symbols, it reads medium and low-density barcodes as well—bringing even more flexibility to your OEM design.

Trust Symbol for Fixed Mount or Embedded Scanning Performance

Choose the best scan module for your embedded or fixed-mount OEM solutions—the LS 1220 unmatched in reliability, performance, and durability, and backed by Symbol's global service and support network. For more information about Symbol scan engines, visit www.symbol.com/oem.

LS 1220 Features

LS 1220 Benefits

Wide scan angle (60º) easily accommodates larger barcodes at or near contact

Perfect for high volume scanning applications that require contact scanning such as kiosks or ATMs

Industrial class housing ensures reliability and durability

Small rugged housing is optimized for easy integration into fixed mount or embedded applications

Superior scanning performance and sophisticated decoding algorithms

Assures the highest first-time read rate and accuracy, even on damaged or poorly printed symbols

Available in standard, wide angle, or very high density versions

Flexible scanning performance for a wide range of applications in almost any industry

Mylar® scan element

Unsurpassed scanning performance without friction or wear; covered by a lifetime warranty

LS 1220 Specifications

LS 1220

LS 1220WA

LS 1220VHD

LS 1220 Physical Characteristics:

Dimensions:

1.3" in. H x 2.13" in. W x 2.18" in. D 3.3 cm H x 5.4 cm W x 5.5 cm D

1.3" in. H x 2.13" in. W x 2.18" in. D 3.3 cm H x 5.4 cm W x 5.5 cm D

1.3" in. H x 2.13" in. W x 2.18" in. D 3.3 cm H x 5.4 cm W x 5.5 cm D

Weight:

6.5 oz (184 gm)

6.5 oz (184 gm)

6.5 oz (184 gm)

LS 1220 Performance Characteristics:

Light Source:

Visible Laser Diode 650 nm

Visible Laser Diode 650 nm

Visible Laser Diode 650 nm

Scan Rate:

35 (± 5) scans/sec (bi-directional)

35 (± 5) scans/sec (bi-directional)

35 (± 5) scans/sec (bi-directional)

Scan Angle:

42º nominal

60º nominal

37º nominal

Scan Patterns:

Linear

Linear

Linear

Print Contrast Minimum:

20% absolute dark/light reflectance differential, measured at 650 nm

20% absolute dark/light differential, measured at 650 nm

40% absolute dark/light differential, measured at 650 nm

Decode Capability:

UPC/EAN, Code 39, Code 39 full ASCII, Code 93, Codabar, I 2 of 5, Code 128, EAN 128, Discrete 2 of 5, MSI Plessey

UPC/EAN, Code 39, Code 39 full ASCII, Code 93, Codabar, I 2 of 5, Code 128, EAN 128, Discrete 2 of 5, MSI Plessey

UPC/EAN, Code 39, Code 39 full ASCII, Code 93, Codabar, I 2 of 5, Code 128, EAN 128, Discrete 2 of 5, MSI Plessey

Programmable Parameters:

Laser on time, Trigger Mode, Bi-directional redundancy, Symbology types/lengths, Data formatting, RS 232 communication parameters

Laser on time, Trigger Mode, Bi-directional redundancy, Symbology types/lengths, Data formatting, RS 232 communication parameters

Laser on time, Trigger Mode, Bi-directional redundancy, Symbology types/lengths, Data formatting, RS 232 communication parameters

Interfaces Supported:

RS 232

RS 232

RS 232

LS 1220 User Environment

Ambient Light Artificial:

450 ft. candles (4,884 lux)

450 ft. candles (4,884 lux)

450 ft. candles (4,884 lux)

Ambient Light Sunlight:

8,000 ft. candles (86,112 lux)

8,000 ft. candles (86,112 lux)

8,000 ft. candles (86,112 lux)

Operating Temperature:

-4º to 122º F (-20º to 50º C)

-4º to 122º F (-20º to 50º C)

-4º to 122º F (-20º to 50º C)

Storage Temperature:

-40º to 140º F (-40º to 60º C)

32º to 104º F (0º to 40º C)

32º to 140º F (0º to 104º C)

Humidity:

5% to 95% noncondensing

5% to 95% noncondensing

5% to 95% noncondensing

Power Input Voltage:

5VDC ± 5%

5VDC ± 5%

5VDC ± 5%

Power Input Current:

170 mA typical

170 mA typical

170 mA typical

Power Standby Current:

47 mA

47 mA

47 mA

Shock:

2,000 G

2,000 G

2,000 G

LS 1220 Regulatory:

Laser Classification:

CDRH Class II

CDRH Class II

CDRH Class II

Electrical Safety:

UL, VDE, and CUL recognized laser component

UL, VDE, and CUL recognized laser component

UL, VDE, and CUL recognized laser component
