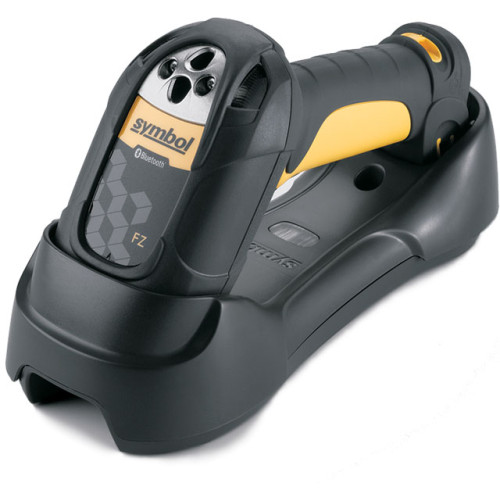

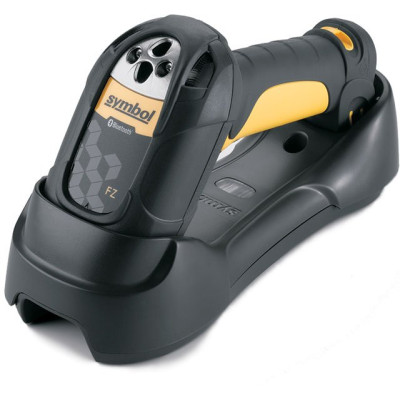

Symbol LS3578-FZ Barcode Scanners

The Symbol LS3578-FZ has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

This device captures all one-dimensional (1D) barcodes even when dirty, damaged or poorly printed.

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.
  • High performance 1D scanner with fuzzy logic decode capability
  • Cordless design with integrated Bluetooth
  • Rugged design withstands multiple 6.5-ft. drops to concrete
  • IP65-rated seal
  • Use up to three scanners with a single cradle
  • Bright 650 nm laser aiming dot
  • Supports reduced space symbologies (RSS)
  • Advanced data formatting
  • Batch mode operation
LS3578-FZ Options
Symbol LS3578-FZ (LS3578-FZBU0100UR)
LS3578-FZ, USB Kit - Cordless - 1D Laser - Fuzzy Logic - Charging and Communication cradle - USB cable - Power supply
Specs: Wireless
Symbol LS3578-FZ (LS3578-FZBU0100IR)
LS3578-FZ, USB interface to radio cradle, 7' straight USB cable, International Version, universal (100-250V AC) power supply. Line cord not included. See accessories. Color: Black/Yellow.
Specs: Wireless - 36 scan/s - Laser - Bluetooth
Symbol LS3578-FZ (LS3578-FZBU01000R)
LS3578-FZ, USB Kit. Cordless 1D Laser Scanner, Fuzzy Logic. Includes USB Cable, Charging/Communications Cradle. Requires Power supply and Power Line Cord. Color: Black/Yellow
Specs: Wireless
Symbol LS3578-FZ (LS3578-FZBR0100UR)
LS3578-FZ, Serial Kit - Cordless - 1D Laser - Fuzzy Logic - Charging and Communication cradle - RS-232 cable - Power supply
Specs: Wireless
Symbol LS3578-FZ (LS3578-FZBR0100IR)
LS3578-FZ, RS-232 International Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle, RS-232 cable, and Power supply. Requires country-specific line cord. See accessories.
Specs: Wireless - 36 scan/s - Laser - Bluetooth
Symbol LS3578-FZ (MOTLS3578-UBK0005R)
LS3578-FZ, 1D Laser - Cordless - USB kit - Fuzzy Logic - Charging/communication cradle - USB cable - Power supply - Color: Yellow/Gray
Symbol LS3578-FZ (LS3578-FZ20005WR)
LS3578-FZ, Scanner Only - Cordless - 1D Laser - Fuzzy Logic - Cradle and accessories sold separately
Specs: Wireless
Recommended Accessories
Motorola (50-16000-182R)
Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
In Stock: Ships Today
+ Add to Quote
Motorola Cable (CBA-U01-S07ZAR)
Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Today
+ Add to Quote
Motorola Cable (CBA-R37-C09ZAR)
Cable, RS-232 Cable - DB-9 female - 9 ft. Coiled - Power Pin 9
In Stock: Ships Today
+ Add to Quote
Symbol Cable (CBA-U09-C15ZAR)
Cable, USB Cable - 15 ft. Coiled
In Stock: Ships Today
+ Add to Quote
Symbol (11-66553-06R)
Wall Mount Bracket - Comaptible wit DS66XX
In Stock: Ships Today
+ Add to Quote

Symbol LS3578-FZ Details

Rugged, cordless scanner with integrated Bluetooth

Accurately scan damaged or poorly printed barcodes

The Symbol LS3578-FZ cordless scanner provides fuzzy logic technology, enabling you to rapidly and accurately read damaged, dirty and poorly printed one-dimensional (1D) bar codes often found in industrial environments.

In the yard, warehouse, distribution center, manufacturing plant or retail store, the Symbol LS3578-FZ offers superior performance and reliability as well as a user-friendly form factor that helps ensure comfortable use over long shifts. Plus, integrated Bluetooth provides reliable and secure wireless data transmission between the scanner and host, including Motorolas rugged VC5090 Vehicle-Fixed Mount Mobile Computer.

Cordless freedom for improved productivity

With no cord between the scanner and host, employees can move freely throughout their work environment, increasing productivity and ef ciency while keeping supply chain inventory up to date at all times. Plus, having no cord reduces downtime from cable breakdowns � a common point of failure in handheld devices used in industrial facilities.

Rugged design to maximize uptime

As rugged as it is innovative, the Symbol LS3578-FZ is designed for scan-intensive industrial applications in the harshest operating conditions. Industry-leading impact tests ensure reliable performance in spite of the inevitable accidental drops. The device is impervious to dust and water, and its exit window is scratch-resistant and recessed for the highest level of durability. As a result, you avoid unnecessary equipment downtime or expensive equipment replacement costs.

Low total cost of ownership (TCO)

In addition to enhancing productivity, the LS3578-FZ offers a low TCO. The industrial-strength construction maximizes the scanners working life, and multiple on-board interfaces provide true plug-and-play simplicity with your host system today and tomorrow. Support for Remote Scanner Management (RSM) enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs.

And since even the most rugged devices require a support plan, a full complement of Enterprise Mobility Services are available to help you protect your investment and maintain peak performance.

For more information, contact us at +1.800.722.6234 or +1.631.738.2400.

Features Benefits
High performance scanner with fuzzy logic decode capability Quickly and accurately scans all 1D barcodes on the rst scan, including poorly printed, dirty, damaged or low-contrast barcodes
Integrated Bluetooth Class 2 v1.2 (Serial Port and HID Pro les with authentication and security) Cordless scanning with secure wireless data transmission
Cordless scanning Enables real-time barcode data collection unrestricted by a cable, reducing repairs from cable failure
Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete Ensures maximum reliability with less downtime resulting from accidental drops
IP65-rated seal (electronic enclosure) Protects against water and dust for reliable performance in the harshest environments
Bright LED and beeper with adjustable volume Helps ensure that decode feedback is clearly visible and audible to users, even in noisy environments
Multi-point communication Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
Bright 650 nm laser aiming dot Delivers clearly visible line for more accurate scanning
Supports reduced space symbologies (RSS) Ensures compatibility with emerging symbols to protect your hardware investment
Advanced data formatting Eliminates costly modifications to the host software
Batch mode operation Increases application design exibility to better meet your specific needs
Remote scanner management ready Enables you to discover, provision and upgrade devices from a central remote location, reducing management time and costs

Symbol LS3578-FZ Specifications

Physical Characteristics
Dimensions: 7.34 in. L x 4.82 in. W x 2.93 in. D
(18.65 cm H x 12.25 cm W x 7.43 cm D)
Weight (including LiON battery): 14.6 oz. (414 gm)
Battery: 2200 mAh Lithium Ion Battery
Battery charge time: Fully charged (100%) in 3 hours
Color: Twilight Black and Yellow
Performance Characteristics
Scanner type: Retrocollective
Light source: 650 nm visible laser diode
Scan repetition: 36 scans per second typical
Minimum element width: 5 mil (0.127 mm)
Nominal working distance: See decode zone
Print contrast: 25% minimum reflective difference
Roll (Tilt)1: +/- 20 degrees from normal
Pitch2: +/- 65 degrees from normal
Skew (Yaw)3: +/- 50 degrees from normal
Decode capability: UPC.EAN, UPC.EAN with Supplemental, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Interfaces supported: RS232, Keyboard Wedge, IBM 468X/469X, USB and Synapse
User Environment
Operating temperature: -4� to 122�F (-20� to 50�C)
Storage temperature: -40� to 140�F (-40� to 60�C)
Humidity: 5% to 95% relative humidity, noncondensing
Sealing: Sealed to IP65 specifications
Drop specifications: Unit functions normally after repeated 6.5-ft. (2-m) drops to concrete
# of Cradle Insertions: 250,000+ insertions
Ambient light immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.
Electrostatic discharge: Conforms to 20 kV air discharge and 8 kV of contact discharge
Cradles STB 3508 and FLB 3508 STB 3578 and FLB 3578
Power requirements: 4.75 � 14 VDC 4.75 � 14 VDC
Typical current draw:
Not charging 10 mA 105 mA @5V
45 mA @9V
Fast rate charge 915 mA @5V
660 mA @9V
915 mA @5V
660 mA @9V
Slow rate charge 480 mA @5V
345 mA @9V
480 mA @5V
345 mA @9V
Radio specification
Radio: Bluetooth, Class 2, Version 1.2, Serial port and HID Profiles
2.402 to 2.480 GHz adaptive frequency hopping (co-existence with 802.11 wireless networks)
Data rate: 720 kbps
Input transient protection: IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
Laser safety: IEC825-1 Class 2
The Symbol LS3578-FZ is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
