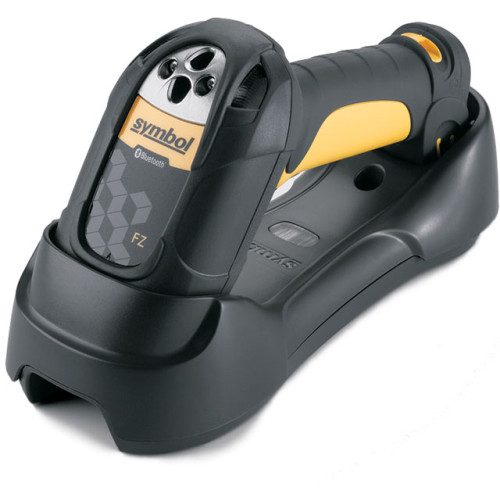

Symbol LS3578-FZ Barcode Scanner Part # LS3578-FZ20005WR

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

LS3578-FZ20005WR - Symbol LS3578-FZ Bar code Scanner

Part Details: Scanner Only - Cordless - 1D Laser - Fuzzy Logic - Cradle and accessories sold separately

New

Need a different version of the Symbol LS3578-FZ Scanner? View all 14 configurations

Additional Information

Color	Yellow
Communication Range	more than 33 ft
Communication Type	Bluetooth
Connection	USB
Connectivity	Cordless
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Manufacturer	Symbol
Model Name	LS3578-FZ
Product Condition	New
Ruggedness	Rugged
Scan Pattern	Single Line
Scanner Capability	1D
Scanner Type	Laser

Symbol LS3578-FZ Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Rate: 36 scan/s
Connectivity Technology: Wireless
Scanning Distance: 45 ft
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS3578-FZ
Product Name: Symbol LS3578-FZ Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Black
- Yellow
Weight (Approximate): 14.80 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Symbol LS3578-FZ Barcode Reader
- Quick Start Guide
- Symbol LS3578-FZ Barcode Reader
- Quick Start Guide
Certifications & Standards:
- Input transient protection:
- IEC 1000-4-2
- IEC 1000-4-3
- IEC 1000-4-4
- IEC 1000-4-5
- IEC 1000-4-6
- IEC 1000-4-11
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- Laser safety:
- IEC825-1 Class 2
- RoHS Compliance
Additional Information:
- Interface Option:
- Serial
- Keyboard Wedge
- Wand Emulation
- IBM 468X/469X

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year
