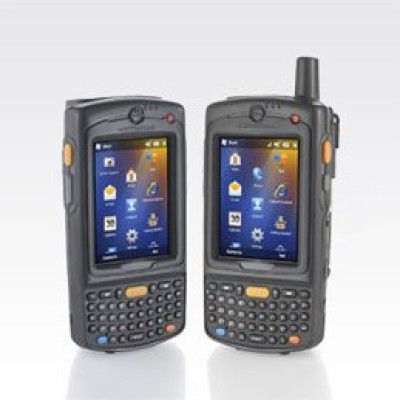

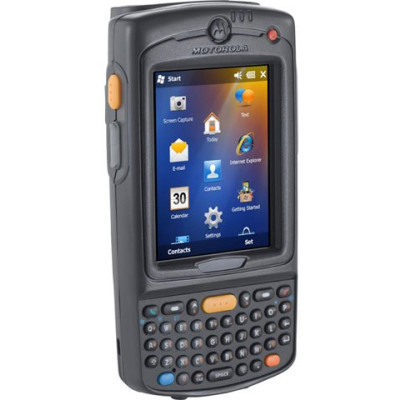

Symbol MC75A Mobile Computer

Communications

Network connections
Ethernet (via cradle), Full-speed USB, host (USB1.1) or client (USB 2.0)

GPS
Integrated autonomous and assisted GPS (A-GPS) thru SUPL

Operating channels
Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan Only, Chan 8-169 (4920-4980 MHz) Japan Only, Chan 8-165 (5040-5825 MHz), Actual operating channels/frequencies depend on regulatory rules and certification agency

Voice
Integrated voice-over-IP ready (P2P, PBX, PTT), Wi-Fi certified, IEEE 802.11a/b/g direct sequence wireless LAN

Antenna
Internal for LAN, External for WAN

Individual data rates supported
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

Security
WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCX v4 Certified, FIPS 140-2 certified

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Performance characteristics

Data capture options
1-D/2-D barcode scanning plus 3.2 megapixel auto-focus flash enabled color digital camera

Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition, Microsoft Windows Mobile 6.5 Professional

Memory
256MB RAM/1GB Flash

Processor (CPU)
PXA320 @ 806 MHz

Physical characteristics

Audio options
VOWWAN, VOWLAN, Speakerphone, Handset mode

Dimensions (HxWxD)
WLAN: 6in. L x 3.3in. W x 1.7in.D (15.24cm L x 8.4cm W x 4.4cm D)
WWAN: 7in. L x 3.3in. W x 1.7in.D (17.78cm L x 8.4cm W x 4.4cm D)

Display type
3.5 inch color high definition VGA display (640 x 480)

Notification
Vibrator, LED

Rugged
Yes

Headset
Bluetooth headset, Wired headset

Display resolution
Transflective Color 3.5 full VGA with backlight, 640x480

Keyboard
Numeric, QWERTY, AZERTY, QWERTZ, DSD

Weight
WWAN: Standard 1.5x battery: 14.9ozs/423g
WLAN: Standard 1.5x battery: 14ozs./398g

Power

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery

Extended capacity battery
Rechargeable Lithium Ion 3.7V, 4800 mAh Smart Battery

Regulatory specifications

Hazardous location certifications
UL Class I, II, III Division II, A, B, C, D, F, G (Select Configurations Only)

Environmental
RoHS-compliant

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65, Supplement C
Canada: RSS-102
EU: EN 50380
Australia: Radio Communications Standard 2003

Electrical safety
EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

Laser safety¹
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

EMI/RFI
North America: FCC Part 15, Class B
Canada: ICES 003 Class B
EU: EN55022 Class B, EN301 489-1, EN301 489-3, EN301 489-7, EN301 489-17, EN301 489-24, EN60601-1-2
Australia: AS/NZS CISPRA 2.2

User environment

Ambient lighting tolerance²
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Drop specification
Multiple 6 ft. / 1.8M drops per MIL STD 810G specifications

Electrostatic discharge (ESD
+/- 15KV air discharge; +/- 8KV direct discharge

Humidity
95% non-condensing

Storage temperature
-40° F to 158° F/-40° C to 70° C (w/o battery)

SAP certification³
See footnote.

Tumble specifications
1, 000 1.6 ft./.5 m tumbles (2, 000 drops); per applicable IEC Specifications

Environmental sealing
IP54

Operating temperature
14° F to 122° F/-10° C to 50° C
