Symbol MS-1204FZY-I000R Fixed Barcode Scanner Symbol MS-1204FZY-I000R Fixed Barcode Scanner Symbol MS-1204FZY-I000R Fixed Barcode Scanner Symbol MS-1204FZY-I000R Fixed Barcode Scanner

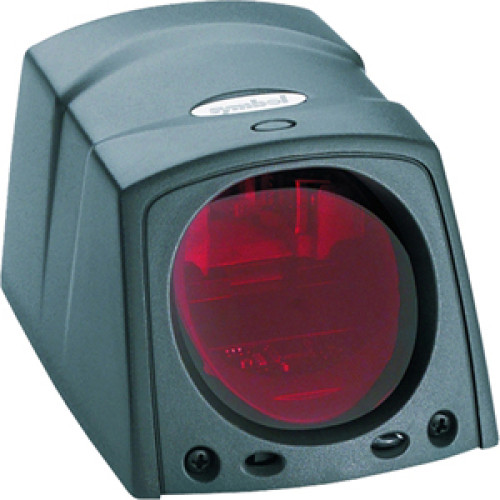

Symbol MS-1204FZY-I000R Fixed Barcode Scanner
Part #: MS-1204FZY-I000R | SKU: SYM30910

The Symbol MiniScan MS1204 Bar Code Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. The MiniScan MS1204 Bar Code Reader features fuzzy logic for premium scanning on 1D bar codes including poorly printed and low contrast. The Symbol MiniScan MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Symbol MS-1204FZY-I000R Fixed Barcode Scanner

Part Details: Zebra MiniScan MS1204 Bar Code Reader - Wired - Linear
Need a different version of the Symbol MiniScan MS1204 Fixed Barcode Scanner? View all 2 configurations

Additional Information

Manufacturer Symbol
Model Name MiniScan MS1204
Symbol MiniScan MS1204 Specs Symbol MiniScan MS1204 Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
  • Depth of Field:
    • 3.25" - 7"@5 mil
    • 3" - 12.50"@7.50 mil
    • 2.20" - 25.75"@13 mil - 100% UPC
    • 1" - 34"@20 mil - 80% MRD
    • 1" - 27.25"@20 mil - 25% MRD
    • 2.20" - 66.75"@40 mil
    • 4" - 75"@55 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS1204
  • Product Name: MiniScan MS1204 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.6"
  • Width: 2.3"
  • Depth: 2.9"
  • Weight (Approximate): 4.45 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European
    • Union EMC Directive
    • Australian SMA
    • Environmental:
    • RoHS
  • Additional Information:
    • Supported Interfaces:
    • RS 232

Warranty

  • Limited Warranty: 1 Year
