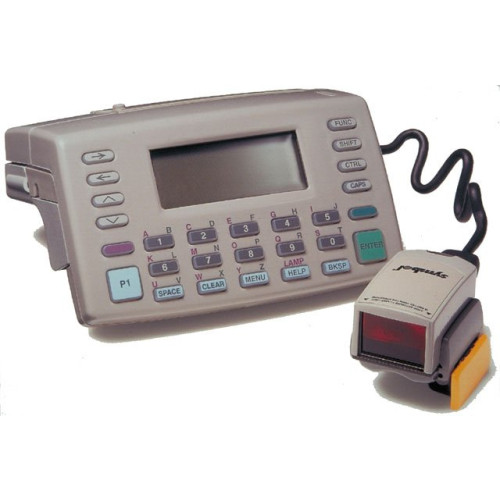

Symbol WSS1060-S486S1WW Mobile Computer

Symbol WSS1060-S486S1WW Mobile Computer
Part #: WSS1060-S486S1WW | SKU: SYM16748

The WSS 1060 Scanning System from Symbol Technologies helps users achieve new levels of productivity and accuracy while advanced ergonomics make them easy to use and comfortable to wear. Scanning portable computing and wireless networking can now be performed while the user's hands remain totally free. Plus the WSS 1060 system represents breakthroughs in miniaturization performance and data transmission. These new capabilities can increase productivity and ease of use in warehousing transportation-logistics manufacturing retailing and other industries including e-commerce. The WSS 1060 system comprises two components - a scanner and wearable wrist computer. The RS 1 Ring Scanner is worn on the index finger. It is activated by pointing the finger at the bar code while pressing the thumb against a trigger. The RS 1 Ring Scanner is the smallest wearable laser scanner in the world weighing only 1.7 oz.-48 gm and just 0.9 in.-23 mm high. It is ideal for scanning bar codes at distances of up to 2 ft.-0.6m. The WS 1000-LR long-range scanner is worn on the back of the hand and reads bar codes on pallets at distances of up to 25 ft.-7.6 m. The WWC 1060 computer is worn on the forearm and include a CPU display keyboard battery pack and Spectrum24 wireless communications. The WWC 1060 features Spectrum24 High Rate with 11 Mbps throughput. Designed to IEEE 802.11b interoperability standards for next-generation direct sequence wireless LANs Spectrum24 High Rate delivers data transmissions of up to 11 Mbps that's more than five times faster than standard wireless LANs. But Symbol didn't stop at defined standards: super-smart algorithms advanced mobility and security features and much more combine to bring you the best in high-speed wireless LAN technology and services.

Symbol WSS1060-S486S1WW Mobile Computer

Part Details: Wearable Scanning System (Spectrum24, 11MB, Trilogy 2+ Card, RS-1 Scanner, Conformal Coated Freezer version - WSS1060, Standard 8 Line Display, Standard 640KB RAM, Standard 27 key and Worldwide)
Need a different version of the Symbol WSS 1060 Mobile Computer? View all 2 configurations

Additional Information

Manufacturer AIDC Symbol
Model Name WSS 1060
Operating System DOS
RAM Memory 640 KB
Scanner Type Laser
Style Wearable
Symbol WSS 1060 Specs Symbol WSS 1060 Specs (pdf)

Technical Information

  • Operating System: DOS DR DOS
  • Processor: NEC V25 16MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • Airbeam Safe (VPN)
    • WEP 40
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
  • Scanner Type: Laser Standard Range
  • Symbologies Supported: All Standard 1D Symbologies

General Information

  • Manufacturer: Symbol
  • Product Line: Wearable Scanning System (WSS)
  • Product Name: WSS 1060 Wearable Scanning System

Physical Characteristics

  • Display: Monochrome - 8 Lines x 20 Characters - FSTN LCD
  • Keyboard: 27 Key Keypad Integrated
  • Battery Capacity: 1200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.9" (74mm) x 4.8" (122mm) x 3.4" (86mm)
  • Weight: 11.3 oz

Environmental Conditions

  • Environmental Sealing: MIL-STD-810D, 506.2, Procedure II-Drip
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 5' To Concrete

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Other

  • Package Contents: WSS Terminal; RS-1;

Memory

  • RAM Memory: 640KB

Agency Approvals

  • Agency Approvals: Electrical Safety:

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
