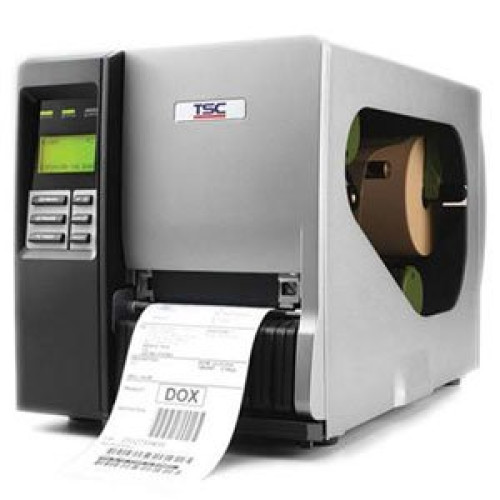

TSC 99-047A005-00LF Barcode Label Printer

TSC 99-047A005-00LF Barcode Label Printer
Part #: 99-047A005-00LF | SKU: TSC207836

Offering 600-dpi resolution, the TSC TTP-644M die-cast aluminum label printer is designed to meet the most demanding bar coding and identification needs. With its durable design and high-resolution capability, the TTP-644M is ideal for mission-critical printing applications either on-demand or batch. The TTP-644M operates at speeds up to 4 ips. Standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB FLASH memory, and an SD memory-card slot for adding up to 4 GB of additional FLASH storage. The TTP-644M accommodates ribbons up to 600-meters long, along with a full 8.2-inch OD media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor.

TSC 99-047A005-00LF Barcode Label Printer

Part Details: Industrial Thermal transfer Printer, 600 dpi, Interface Options: USB, Serial, Ethernet, Parallel, Maximum Print width 4.09", SD Card Slot, Real-time clock.
Need a different version of the TSC TTP-644M Barcode Label Printer? View all 3 configurations

Additional Information

Included Features SD Flash Memory Slot
Interface Options Ethernet, Parallel, Serial (RS-232), USB
Labels Per Day more than 10,000
Manufacturer TSC
Max Roll Outer Diameter 8.2
Model Name TTP-644M
Print Resolution 600 dpi
Print Speed 4 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
TSC TTP-644M Specs TSC TTP-644M Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Clear Media Side Door
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP-2410M
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-644M Pro
  • Product Name: TTP-644M Pro Thermal Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-644M Pro Thermal Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • TTP-644M Pro Thermal Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC
    • CB

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 40"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
    • Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Paper Low Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Labels for Model: TSC 99-047A005-00LF Barcode Label Printer

  • TSC 99-047A005-00LF Barcode Label Printer
    Part #: 99-047A005-00LF | SKU: TSC207836

    Industrial Thermal transfer Printer, 600 dpi, Interface Options: USB, Serial, Ethernet, Parallel, Maximum Print width 4.09", SD Card Slot, Real-time clock.

  • TSC 99-147A033-2201 Barcode Label Printer
    Part #: 99-147A033-2201 | SKU: TSC582322

    Industrial Printer - TTP-644 MT - 600 dpi - Thermal Transfer/Direct Thermal Printing - Slot-In Housing - 4.09" Print Width - 4" Per Second Print Speed - USB/Ethernet/Serial/Parallel Interfaces - Real Time Clock - 32GB SD Flash Card Reader

  • TSC 99-147A006-2001 Barcode Label Printer
    Part #: 99-147A006-2001 | SKU: TSC584262

    644MT, PRINTER, TT, 600 DPI, 4 IPS, ETHERNET, USB, PAR, SER, 32GB SD FLASH, USB HOST, RTC, REPLACES 99-147A006-00LF
View All Options

Recommended Printheads for Model: TSC 99-047A005-00LF Barcode Label Printer

View All Options
