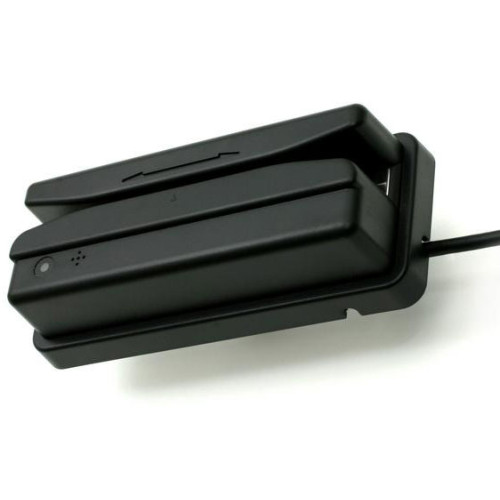

Unitech MS146 Barcode Card Reader

Unitech MS146 Barcode Card Reader

Unitech MS146 Barcode Card Reader

The MS146 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Currently, the MS146 is available in USB interface. Decoded versions are easy to use and configure. All decoded MS146s can be configured with Scanner Configuration Manager software. And configurations can be duplicated in other units by generating custom setup labels.
Starting at: MSRP: $125.00 Price: $81.25
See all options
Unitech MS146 Specs Unitech MS146 Specs (pdf)
OPTICAL

Light source Visible light: 660 nm LED (MS146)
Infrared: 930 nm LED (MS146I)
Sensor Photo diode
Resolution 6 mils (0.15mm) minimum
Depth of field 2 mm
Scan rate 2.0" (50 mm) to 30" (750 mm)/second
Print contrast ratio 0.6
INTERFACE

Connector PC XT / AT / PS/2
Macintosh
RS232
TTL (undecoded)
Operation modes Continuous
Signal Open collector, black = high level (TTL)
MECHANICAL

Dimensions 3.75 Inches (95mm)
1.375 Inches (35mm)
1.875 Inches (30mm)
Weight 6.7 oz. (190g) with cable
Case material ABS plastic
ELECTRICAL

Operating current Undecoded: 35 mA
Decoded: 70mA
Cable 6.0 ft. (1.83m)
DECODER

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
ISBT 128
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Data Editing Almost unlimited
Configuration Scanner Configuration Manager software
Scanned-in bar codes
ENVIRONMENTAL

Operating temperature 32 to 122°F (0 to 50°C)
Storage temperature -4 to 140°F (-20 to 60°C)
Humidity 0% to 95% RH non-condensing
Mechanical shock 5 ft. (1.5 m) drop to concrete
Environmental sealing IP54
Warranty 2 years
Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. USB (4)
  2. Serial (RS-232) (3)
  3. 9-Pin Squeeze (2)
  4. USB-Keyboard Emulation (1)
Scanner Capability
  1. 1D (5)
  1. Unitech MS146I-3PS2G Barcode Card Reader

    Unitech MS146I-3PS2G Barcode Card Reader
    Part #: MS146I-3PS2G | SKU: UNI26592

    Unitech MS146 Bar Code Slot Reader - Wired - Photo Diode
  2. Unitech MS146-3 Barcode Card Reader

    Unitech MS146-3 Barcode Card Reader
    Part #: MS146-3 | SKU: UNI19941

    MS146 Bar Code Slot Reader (AT/XT, Visible Light with IP54)
  3. MS146I-4G Barcode Card Reader

    MS146I-4G Barcode Card Reader
    Part #: MS146I-4G | SKU: UNI23853

    Unitech MS146 Bar Code Slot Reader - Wired - Photo Diode
  4. MS146I-2G Barcode Card Reader

    MS146I-2G Barcode Card Reader
    Part #: MS146I-2G | SKU: UNI26591

    Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode
  5. Unitech MS146-2G Barcode Card Reader

    Unitech MS146-2G Barcode Card Reader
    Part #: MS146-2G | SKU: UNI27509

    Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode
  6. Unitech MS146-4G Barcode Card Reader

    Unitech MS146-4G Barcode Card Reader
    Part #: MS146-4G | SKU: UNI27510

    Unitech MS146 Bar Code Slot Reader - Wired
  7. Unitech MS146I-2RMG Barcode Card Reader

    Unitech MS146I-2RMG Barcode Card Reader
    Part #: MS146I-2RMG | SKU: UNI191003

    Unitech MS146 Barcode Slot Reader - Cable Connectivity - Infrared - Serial
  8. Unitech MS146-4UMG Barcode Card Reader

    Unitech MS146-4UMG Barcode Card Reader
    Part #: MS146-4UMG | SKU: UNI207029

    Unitech MS146 Barcode Slot Reader - Cable Connectivity - LED - Serial
  9. Unitech MS146I-4UMG Barcode Card Reader

    Unitech MS146I-4UMG Barcode Card Reader
    Part #: MS146I-4UMG | SKU: UNI210264

    Unitech MS146 Swipe Barcode Scanner - Cable Connectivity - Black - Cable Connectivity - 1D - Infrared - Black
