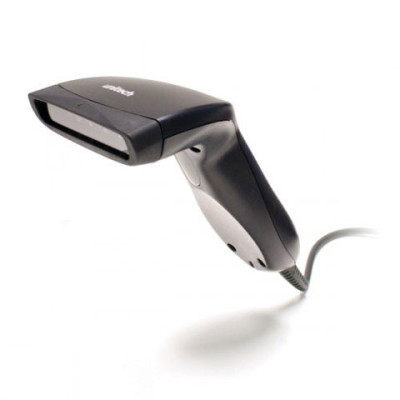

Unitech MS180 Barcode Scanner

The MS180s flexible, multiple interface design supports Keyboard wedge, RS-232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT Keyboard wedge interface supports 8 different character sets. The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Unitech MS180 Specs (pdf)

The Unitech MS180 is a reliable and affordable bar code scanner for retail, healthcare and light industry applications. Its flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and 16 popular terminals by simply replacing a cable. In addition, the IBM PC XT/AT keyboard wedge interface supports eight different character sets.

The MS180's powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. The ergonomic design makes the scanning process easier and more comfortable. It is also rugged enough to withstand multiple 5-feet drops to concrete.
Standard Features
- Superior contact scanning
- Reads damaged / faded labels
- 5-foot drop threshold

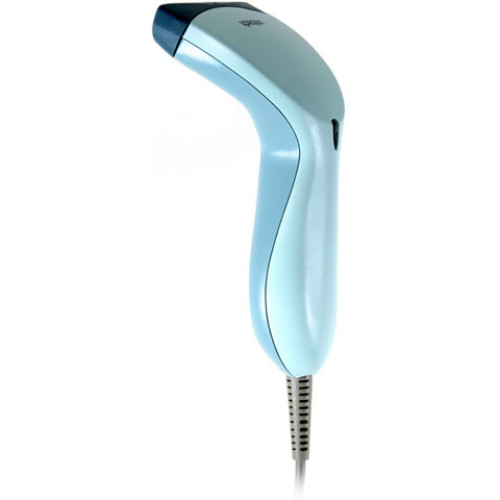

- Available in black or slate blue
- Replaceable interface cable
- Advanced data editing features
- 1 Warranty

Operation & Performance

Scan Rate	45 scans / sec
Print Contrast Ratio	45% minimum
Resolution	4 mils minimum
Scan angle	30 AÁ¸- 150 AÁ¸

Depth of Field

Performance

0 - 0.6 inch on 4-13 mils
0 - 1 inch on 40 mils

Width of Field

Performance

0-2 inch distance

Operation Modes

Types

Trigger, flash or continuous

Interfaces

Types

Keyboard wedge
USB
RS232
Wand emulation
TTL

Symbologies

Types

Code 39 Standard and Full ASCII, Codabar, UPC/EAN with supplement codes, UCC/EAN128, Interleaved 2 of 5, MSI/Plessy code, Standard 2 of 5, China Postal, Code(Toshiba Code), Label Code IV and V, Delta Distance code, Code93, Code128, Code32(Italian Pharmacy

Optical

Receiving Device	2160 Element linear imager
Light source	660 nm visible red LED

Power Source

Power Supply	5 VDC 5 %
Operating Current	100.5 mA @5V (Keyboard Wedge)
Standby Current	21.3 mA @ 5V (Keyboard Wedge)
Switch Life Time	Over 1million times micro switch
Beep Sound Volume	> 70dB

Enclosure

Dimension	7.4"H x 3.46"W x 3.15"D
Weight	4.4 ounces
Housing Material	30%PC + 70% ABS, UL94U0
Outline Shape	Streamline handy type with Unitech logo
Connector Type	RJ-45 phone jack

Environmental

Operating Temperature	32F to 122F
Storage Temperature	-4F to 140F
Humidity	20% RH ~ 85% RH
ESD Protection	8KV contact, 12KV Air discharge
Drop Test	5-foot drop threshold

Regulatory

CE, FCC Class A, BSMI

Warranty

Main Unit	1 year
Cables, Adapters	90 days

Extended Details

Refine Your Options

Shop By

Interface Options

Form Factor

Handheld (4)

Scanner Capability

1D (7)

Connectivity

Corded (4)

Scanner Type

CCD (4)

Included Cables

Color

Unitech MS180-1K Barcode Scanner
Part #: MS180-1K | SKU: UNI23854

3"CCD,KBWEDGE,AT&PS2 CABLE, 1 YR.WARRANTY
Unitech MS180-1UG Barcode Scanner
Part #: MS180-1UG | SKU: UNI27613

USB kit. Includes USB cable.
Unitech MS180-1RG Barcode Scanner
Part #: MS180-1RG | SKU: UNI27614

RS-232 kit. Includes 9-pin RS232 cable (1550-201409). Requires AC power adapter
Unitech MS180-L Barcode Scanner
Part #: MS180-L | SKU: UNI27615

PS/2 kit. Includes straight PS/2 laptop cable (1550-201434)
Unitech MS180-1KG Barcode Scanner
Part #: MS180-1KG | SKU: UNI59170

Scanner (Decoded Contact CCD Scanner plus Universal AT and PS/2 Interface Cable)
Unitech MS180-1UBG Barcode Scanner
Part #: MS180-1UBG | SKU: UNI66989

USB Kit. Kit Includes: CCD Contact Scanner, 3" Scan Width, USB Cable. Color: Black.
Unitech MS180-WG Barcode Scanner
Part #: MS180-WG | SKU: UNI224192

MS180, Scanner (3 inch Decoded Contact CCD Scanner with Wand Emulation Cable - 1 Year Warranty). For the USB kit purchase (Part# MS180-1UG).
