Unitech MS180-1KG Barcode Scanner Unitech MS180-1KG Barcode Scanner Unitech MS180-1KG Barcode Scanner Unitech MS180-1KG Barcode Scanner Unitech MS180-1KG Barcode Scanner

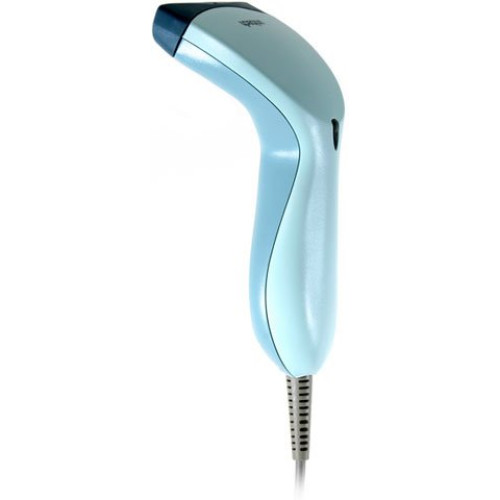

Unitech MS180-1KG Barcode Scanner
Part #: MS180-1KG | SKU: UNI59170

The MS180s flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device.

Unitech MS180-1KG Barcode Scanner

Part Details: Scanner (Decoded Contact CCD Scanner plus Universal AT and PS/2 Interface Cable)
Need a different version of the Unitech MS180 Barcode Scanner? View all 7 configurations

Additional Information

Color Blue
Connectivity Corded
Form Factor Handheld
Included Cables AT/PS2 Keyboard Wedge
Interface Options PS/2 Keyboard Wedge
Manufacturer Unitech
Model Name MS180
Scanner Capability 1D
Scanner Type CCD
Unitech MS180 Specs Unitech MS180 Specs (pdf)

Technical Information

  • Scan Rate: 45 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Delta Code
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Delta Code
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 1"@

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS180
  • Product Name: MS180 Barcode Reader

Physical Characteristics

  • Height: 2"
  • Width: 3.5"
  • Depth: 7.5"
  • Color: Beige
  • Weight (Approximate): 4.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MS180 Barcode Reader
    • Universal AT & PS/2 Interface Cable
    • MS180 Barcode Reader
    • Universal AT & PS/2 Interface Cable
  • Certifications & Standards:
    • CE
    • BSMI
    • FCC Class A
    • RoHS Compliant
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialUSB

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
