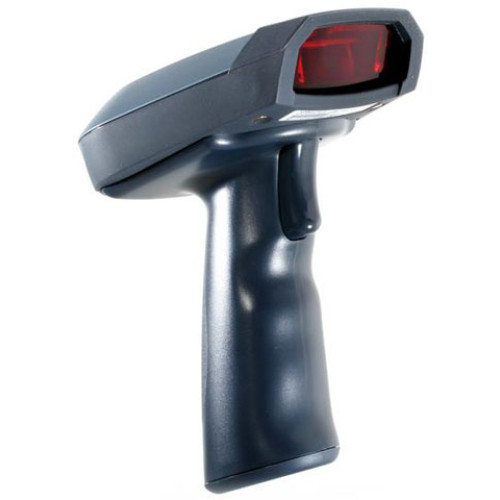

Unitech MS860 Barcode Scanner

Sleek and lightweight, the wireless MS860 withstands multiple 5-feet drops onto concrete floor, thanks to its surrounding rubber nose and bumper. Its high speed scanning, low power consumption and effective depth of field, make the wireless MS860 suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and expense by making software changes unecessary.

See all options

Specs & Info
All Options

Unitech MS860 Specs (pdf)

Optical

Light source	650 nm laser diode
Scan rate	35 scans/sec (bi-directional)
Scan width	9 inches (230mm) - PCS=90%, 40mil code
Minimum resolution	4mil
Print contrast	20% minimum
Width of field	Up to 21" (53cm) with 55mil resolution

Communication

Radio frequency	Unlicensed 2.4 GHz Bluetooth
Scalability	Point to point
Radio range	Over 30 meters - line of sight
Interfaces supported	RS232 USB Keyboard wedge (PS/2 & AT)

Decoder

Symbologies	China Postal Code Codabar Code 11 Code 32 Code 39 (full ASCII) Code 39 (Standard) Code 93 Code 128 Delta Code EAN-8 with add-on code EAN-13 with add-on code EAN 128 Interleaved 2 of 5 ISBN / Bookland EAN Italian Pharmacy Label Code IV Label Code V MSI / Plessey Standard 2 of 5 Toshiba Code UPC-A with add-on code UPC-E with add-on code
Operation	Trigger, flash, multiscan, and one-press-one-scan mode
Data editing	Prefix, suffix, Code ID, and reformatting data

Physical

Scanner dimensions	Height: 5.8 inches (147mm) Length: 5.0 inches (127mm) Width: 3.44 inches (87mm) Weight 10.9 oz (310 grams)
Cradle dimensions:	Length: 8.2 inches (209mm) Width: 3.9 inches (99.2mm) Height: 2.3 inches (57.5mm) Weight 14.5 oz (410 grams)

Electrical

Battery type	Lithium-ion
Battery capacity	3.7 1900mAh
Battery charging time	Fully charged (100%) in 4.5 hours
Operating time	Over 16 hours at 5 seconds per scan
Buzzer	90dB from 4" (10cm)

Cradle

Power	Operates with a separate 9V, 1.2A power supply
Interfaces	RS232 USB Keyboard wedge (PS/2 & AT)

Environmental

Operating temperature	32°F to 122°F (0°C to 50°C)
Storage temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	5% to 95% RH non-condensing
ESD Protection	Contact: 8K Air: 12K
Mechanical shock	Withstands 5 foot (1.5 meter) bounce off concrete
Regulatory approvals	CE FCC BSMI
Warranty	1 year

Extended Details

Refine Your Options

Unitech MS860-WUA Barcode Scanner
Part #: MS860-WUA | SKU: UNI15408

MS860 Wireless Laser Scanner (MS860-W0 - Wireless Laser 1D Bar Code Scanner, MS086 - Docking, Charging and Communication Station for MS860-W0, 1010-600858 - MS860 Power Supply and 1550-600709 - Black, Straight USB Interface Cable)
Unitech MS860-WUAG Barcode Scanner
Part #: MS860-WUAG | SKU: UNI32241

USB kit: Includes Wireless Laser Scanner, Charging and Communication dock, US Power Supply and USB Interface Cable.
Unitech MS860-W8A Barcode Scanner
Part #: MS860-W8A | SKU: UNI49211

802.11b kit: includes scanner, Charger and AC Adapter.
Unitech MS860-WRA Barcode Scanner
Part #: MS860-WRA | SKU: UNI49212

MS860 Wireless Laser Scanner (Bluetooth, RS232 with MS086 Dock and Charging/Communication Station)

Recommended Accessories for Model: Unitech MS860 Barcode Scanner

Unitech 1010-602141G Power Device
Part #: 1010-602141G | SKU: UNI69456

Power Supply - 100-240V - 9V DC - Compatible with Unitech HT630 and MS860

MSRP: $21.00 Price: $13.65
Unitech 1550-201531G Cables, Connectors, and Adapters
Part #: 1550-201531G | SKU: UNI53850

Unitech RS-232 Serial Interface Cable - RJ-45 - DB-9 Female Serial - Black

MSRP: $34.00 Price: $22.10
Unitech 1550-201408 Cables, Connectors, and Adapters
Part #: 1550-201408 | SKU: UNI27620

Unitech Scanner Coiled Cable - RJ-50 Male - D-Sub Female - 4.49ft - Gray
Unitech 46001 Accessory
Part #: 46001 | SKU: UNI253666

MS860 OUTPUT WINDOW
Unitech 1550-601728 Accessory
Part #: 1550-601728 | SKU: UNI26565

Unitech Straight USB Interface Cable - USB - Black
