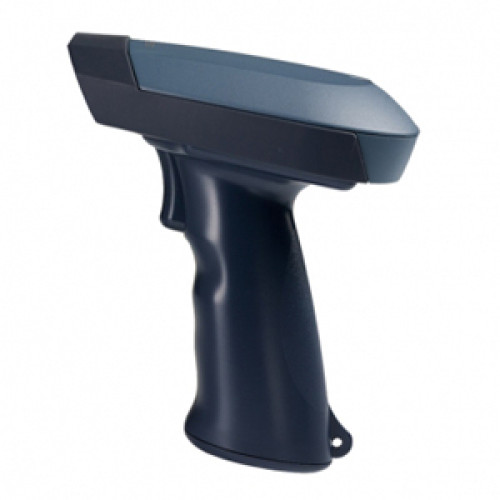

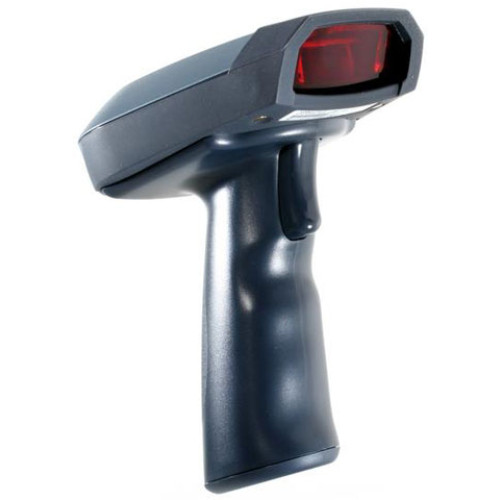

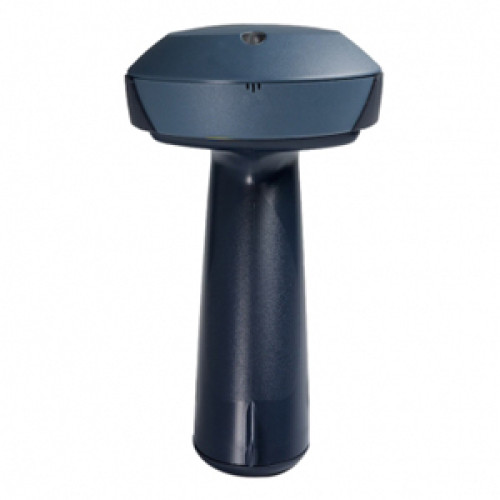

Unitech MS860-WUAG Barcode Scanner
Part #: MS860-WUAG | SKU: UNI32241

Sleek and lightweight, the wireless MS860 withstands multiple 5-feet drops onto concrete floor, thanks to its surrounding rubber nose and bumper. Its high speed scanning, low power consumption and effective depth of field, make the wireless MS860 suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and expense by making software changes unecessary.

Unitech MS860-WUAG Barcode Scanner

Part Details: USB kit: Includes Wireless Laser Scanner, Charging and Communication dock, US Power Supply and USB Interface Cable.

Need a different version of the Unitech MS860 Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS860
Scanner Capability	1D
Scanner Type	Laser

Unitech MS860 Specs (pdf)

Technical Information

Scan Rate: 35 scan/s
Connectivity Technology: Wireless
Light Source: Laser
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- ISBT 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- ISBT 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
Maximum Scan Resolution: 4 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS860
Product Name: MS860 Barcode Reader

Physical Characteristics

Height: 5.8"
Width: 3.4"
Depth: 5"
Color: Dark Gray
Weight (Approximate): 10.93 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- MS860 Barcode Reader
- Docking
- Charging & Communication Station
- Black USB Interface Cable
- Power Supply
- MS860 Barcode Reader
- Docking
- Charging & Communication Station
- Black USB Interface Cable
- Power Supply

Warranty

Limited Warranty: 1 Year

Network & Communication

Bluetooth: Yes

Extended Details
