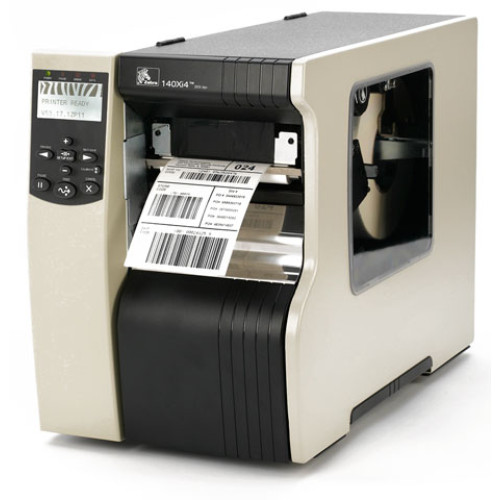

Zebra 140Xi4 Barcode Label Printer Zebra 140Xi4 Barcode Label Printer Zebra 140Xi4 Barcode Label Printer

Zebra 140Xi4 Barcode Label Printer

Zebra 140Xi4 Barcode Label Printer

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.
Discontinued - Need Assistance
See all options
Zebra PX45 Specs Zebra PX45 Specs (pdf) Zebra PX45 Driver Zebra PX45 Driver (download)

STANDARD FEATURES

  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
More Standard Features
  • 16 MB SDRAM; 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Improved head test for element out
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • ZPL or ZPL II Programming Language
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Unicode™ - Compliant
  • Intelligent printhead
Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory

  • 16 MB SDRAM
  • 8 MB Flash

Print width: 5.04" (128mm)
Print length: 150" (3810 mm) maximum with 16 MB memory using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 5.51" (140mm)
Minimum label and liner width: 1.57" (40mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: continuous, black mark, roll-fed, die-cut, fanfold

Ribbon Characteristics

Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: 1.57" (40mm) to 5.1" (130mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C) Direct thermal
Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrica: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals

  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
Physical Characteristics

Width: 11.31" (287.3mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 55 lbs (25 kg)

Related Products

Options

  • ZebraNet Wireless Plus Print Server
  • ZebraNet Internal Wireless Plus (Discontinued)
  • Internal IPv6 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Rewind with peel
  • Cutter
  • Bi-fold media door with clear panel
  • Media supply spindle for 40 mm cores
  • 64MB Flash Memory with ZPL II and XML
  • Scalable and international fonts
  • Applicator interface
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge
  • Enterprise Connector
  • ZebraNet b/g Print Server

Communication and Interface Capabilities

  • USB 2.0 port (12 Mbits per second)
  • RS-232C/422/485 multi-drop (optional adaptor)
  • High-speed, bi-directional, IEEE 1284 parallel interface
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Applicator interface
  • IPV6 Print Server
  • ZebraNet b/g Print Server
Programming Languages

Core programming languages: XML, ZPL, ZPL II

barcodes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF
PDF417
QR Code (requires Asian version printer)
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Fonts and Graphics

  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM® Code Page 850 International Characters
Extended Details
Refine Your Options
Shop By
Shopping Options
Printing Technology
  1. Thermal Transfer (11)
Print Resolution
  1. 203 dpi (13)
Print Speed
  1. 14 ips (10)
Interface Options
  1. Serial (RS-232) (8)
  2. Parallel (8)
  3. USB (8)
  4. Ethernet (6)
  5. Wi-Fi (3)
Included Features
  1. XML (2)
  2. Clear Media Side Door (1)
Printer Type
  1. Industrial (11)
  1. Zebra 140-8K1-00000 Barcode Label Printer

    Zebra 140-8K1-00000 Barcode Label Printer
    Part #: 140-8K1-00000 | SKU: ZEB147634

    Zebra 140Xi4 Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Real Time Clock - 5.04" Print Width - 14 in/s Mono - 203 dpi - Wireless LAN - Black Mark, Continuous Label, Die-cut Label, Roll Fed, Fanfold - 5.51" Label Width - 12.50 ft Label Length
  2. Zebra 140-801-00000 Barcode Label Printer

    Zebra 140-801-00000 Barcode Label Printer
    Part #: 140-801-00000 | SKU: ZEB81677

    Thermal Transfer - 5.04" print width - 203 dpi - Tear Bar - RS-232 serial - USB 2.0 - Centronics parallel - internal ZebraNet 10/100 print server - 64MB FLASH memory - ZPL II - XML - printhead element out detection - clear media side door - media supply hanger- North America power cord
  3. Zebra 140-801-00100 Barcode Label Printer

    Zebra 140-801-00100 Barcode Label Printer
    Part #: 140-801-00100 | SKU: ZEB81394

    Thermal Transfer printer - 5.04" print width - 203 dpi - Cutter - Tear Bar - RS-232 serial - USB 2.0 - Centronics parallel - Internal ZebraNet 10/100 print server - 64MB FLASH memory - ZPL II - XML -Printhead element out detection - Clear media side door - Media supply hanger

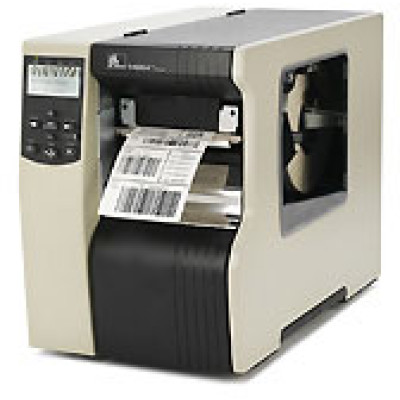

  4. Zebra 140-801-00203 Barcode Label Printer
