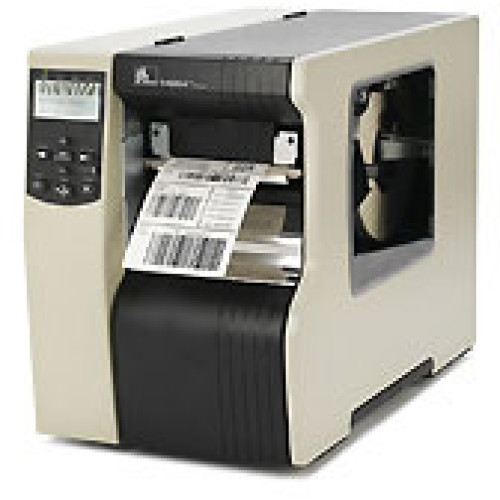

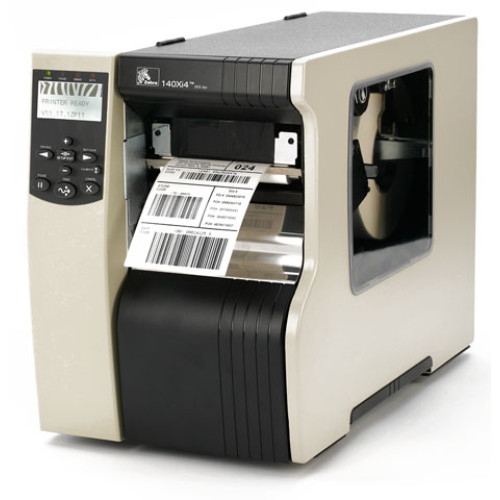

140-801-00000 - Zebra 140Xi4 Bar code Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra 140Xi4 Barcode Printer Part # 140-801-00000

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.

140-801-00000 - Zebra 140Xi4 Bar code Printer

Part Details: Thermal transfer - 5.04" print width - 203 dpi - Tear bar - RS-232 serial - USB 2.0 - Centronics parallel - internal ZebraNet 10/100 print server - 64MB FLASH memory - ZPL II - XML - printhead element out detection - clear media side door - media supply hanger- North America power cord
New
Need a different version of the Zebra 140Xi4 Printer? View all 43 configurations

Additional Information

Brand Zebra
Filter Filter
Included Features XML, ZPL2
Interface Options Ethernet, Parallel, Serial, USB
Label Core 3 inches
Labels Per Day more than 10,000
Manufacturer Zebra
Max Label Width 5.51
Max Roll Outer Diameter 8
Maximum Print Width 5.04
Model Name 140Xi4
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 14
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
Zebra 140Xi4 Specs Zebra 140Xi4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 5.04"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 140Xi4
  • Product Name: 140Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 11.3"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 140Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 140Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Additional Information:
    • Auto calibration
    • Unicode Compliant
    • Intelligent printhead
    • 300 unique darkness settings
    • Improved head test for element out
    • Construction: 12-gauge steel frame
    • Single 32 bit 133 Mhz RISC processor
    • Multi-level Element Energy Equalizer
    • Clear Media Side Door and Media Hanger
    • Automatic media/ribbon sensing capability
    • Mirror feature allows user-defined printer configurations to be retrieved from the network

Media Types & Handling

  • Maximum Label Width: 5.51"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC
Extended Details
