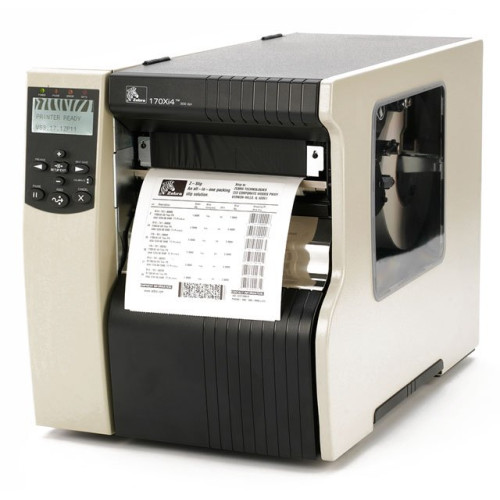

Zebra 170Xi4 Barcode Label Printer
Part #: 170-801-00010 | SKU: ZEB101655

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 170Xi4 Barcode Label Printer

Part Details: Zebra 170Xi4 Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Real Time Clock - 6.60" Print Width - 12 in/s Mono - 300 dpi - Black Mark, Continuous Label, Fanfold, Roll Fed, Die-cut Label - 7.10" Label Width - 12.50 ft Label Length

Additional Information

Brand (Incoming new front-end MFG) Zebra
Filter Filter
Interface Options Ethernet, Parallel, Serial (RS-232), USB
Label Core 3 inches
Manufacturer Zebra
Max Label Width 7.10
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name 170Xi4
Print Method Thermal Transfer
Print Resolution 300 dpi, 305 dpi
Print Speed 12
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Clear Media Side Door
    • Mirror Printing
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • ISBT-128
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • POSTNET
    • Standard 2 of 5
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39
    • Plessey

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 67.24 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Label Printer
    • North American Edition 120 VAC Power Cord
    • User Guide
    • Software CD
    • 170Xi4 Label Printer
    • North American Edition 120 VAC Power Cord
    • User Guide
    • Software CD
  • Certifications & Standards:
    • BSMI
    • cTUVus
    • CCC
    • CE
    • C-Tick
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • KCC
    • NOM
    • S Mark
    • STB
    • UkrSEPRO
    • VCCI
    • ZIK

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Fanfold
    • Roll Fed
    • Die-cut Label
  • Media Thickness: 12 mil
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
