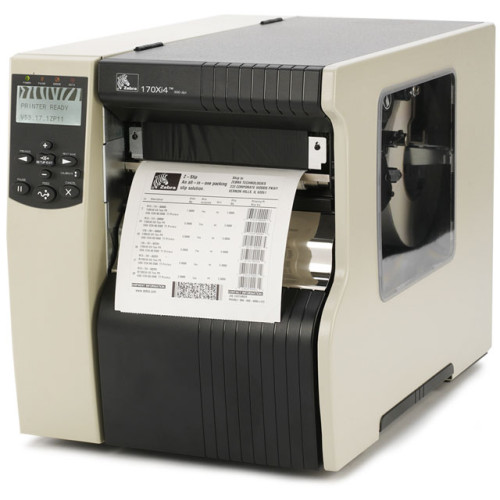

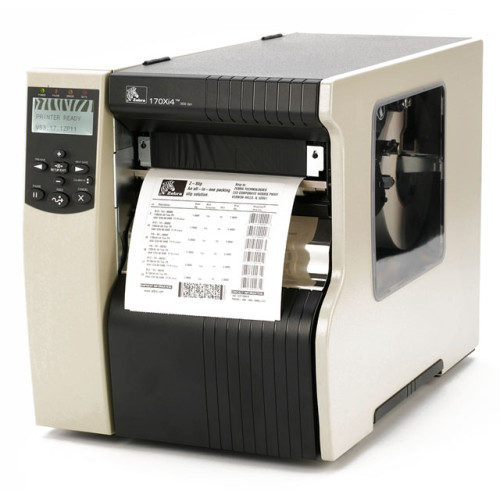

Zebra 170Xi4 Barcode Label Printer

Zebra 170Xi4 Barcode Label Printer

The industrial-strength Zebra 170Xi4 with 203- or 300 dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Discontinued - Need Assistance
See all options
  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 MHz RISC processor
  • 16 MB SDRAM, 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality

STANDARD FEATURES

  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor

More Standard Features
  • 16 MB SDRAM; 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Improved head test for element out
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • ZPL or ZPL II Programming Language
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Unicode™ - Compliant
  • Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

  • 16 MB SDRAM
  • 8 MB Flash

Print width: 6.6" (168mm)
Print length: 150" (3810 mm) using continuous media
Print speed: Up to 12" per second (203 dpi)
Media sensors: Reflective, Transmissive


Media Characteristics

Maximum label and liner width: 7.1" (180mm)
Minimum label and liner width: 2.0" (51mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media
Maximum roll diameter: 8" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold


Ribbon Characteristics

Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 and 3:1 media roll to ribbon ratios
Ribbon width: 2.0" (51mm) to 6.7" (170mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)


Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals

  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK

Physical Characteristics

Width: 13.31" (338.1mm)
Height: 15.5"" (393.7mm mm)
Depth: 20.38" (517.5 mm)
Weight: 67 lbs (30.5 kg)


Related Products

Options

  • ZebraNet Wireless Plus Print Server
  • ZebraNet Internal Wireless Plus (Discontinued)
  • Internal IPv6 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Rewind with peel
  • Cutter
  • Bi-fold media door with clear panel
  • Media supply spindle for 40 mm cores
  • 64MB Flash Memory with ZPL II and XML
  • Scalable and international fonts
  • Applicator interface
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge
  • Enterprise Connector
  • ZebraNet b/g Print Server

Communication and Interface Capabilities

  • USB 2.0 port (12 Mbits per second)
  • RS-232C/422/485 multi-drop (optional adaptor)
  • High-speed, bi-directional, IEEE 1284 parallel interface
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Applicator interface
  • IPV6 Print Server
  • ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL, ZPL II


barcodes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensionalAztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF
PDF417
QR Code
QR Code (requires Asian version printer)
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Fonts and Graphics

  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM® Code Page 850 International Characters
