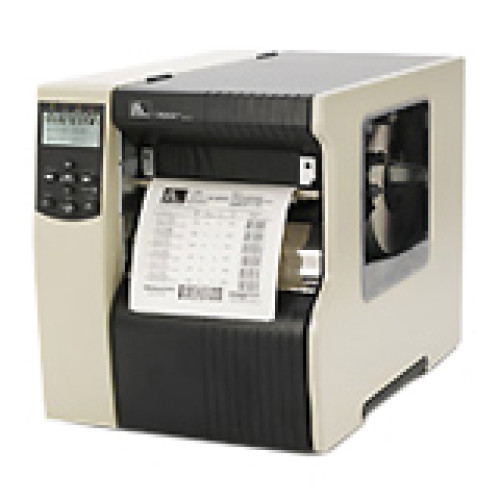

Zebra 170Xi4 Barcode Label Printer
Part #: 172-801-00100 | SKU: ZEB85360

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 170Xi4 Barcode Label Printer

Part Details: Zebra 170Xi4 Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - USB - Serial - 6.60" Print Width - 12 in/s Mono - 203 dpi - Continuous Form, Roll Fed, Black Mark, Die-cut Label, Fanfold - 7.10" Label Width - 12.50 ft Label Length

Additional Information

Brand (Incoming new front-end MFG) Zebra
Filter Filter
Interface Options Ethernet, Parallel, Serial (RS-232), USB
Label Core 3 inches
Manufacturer Zebra
Max Label Width 7.10
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name 170Xi4
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 12
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Aztec Code
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • Code 39
    • Code 93
    • Code 49
    • ISBT-128
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • EAN-13
    • EAN-8
    • LOGMARS
    • MSI
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Codablock
    • Data Matrix
    • Maxi Code
    • Micro PDF
    • QR Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Continuous Form
    • Roll Fed
    • Black Mark
    • Die-cut Label
    • Fanfold
  • Media Size: Custom Size
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Label Printer
    • Internal Zebranet 10/100 Print Server
    • User Guide
    • Software CD
    • North American Edition, 120 VAC Cord
    • 170Xi4 Label Printer
    • Internal Zebranet 10/100 Print Server
    • User Guide
    • Software CD
    • North American Edition, 120 VAC Cord

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 110 V AC

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Network & Communication

  • Ethernet Technology: Fast Ethernet
Extended Details
