Datalogic Magellan 1100i Barcode Scanner Datalogic Magellan 1100i Barcode Scanner

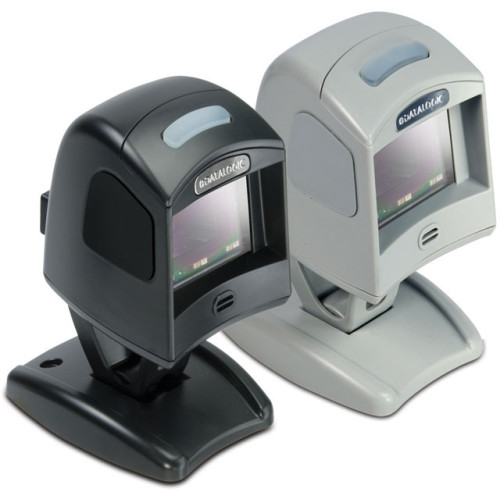

Datalogic Magellan 1100i Barcode Scanner

Datalogic Magellan 1100i Barcode Scanner

The Datalogic Magellan 1100i reader's compact size makes it the ideal solution for space-constrained environments. With a precise reading area, the Magellan 1100i is perfect for hands-free or handheld scanning and helps reduce accidental misreads of items caused by stray laser scan lines - improving productivity and customer satisfaction. A wide variety of connectivity options, a comprehensive multi-interface set and a powerful label-editing feature allow easy integration into existing or new host systems. Magellan Value Added Features such as Diagnostics Reporting, Host Download, plus optional Productivity Index Reporting allow management to use data from the Magellan 1100i scanner to improve throughput and manage maintenance. In addition, each scanner supports Remote Management Systems to streamline operations and ongoing support across an enterprise.
Discontinued - Need Assistance
See all options
Datalogic Magellan 1100i Specs Datalogic Magellan 1100i Specs (pdf)
Decoding Capability
  • 1D / Linear Codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
  • 2D Codes
    • Aztec Code
    • Data Matrix
    • MaxiCode
    • QR Code
  • Stacked Codes
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
Electrical
  • Current
    • Operating (Typical)
      • < 400 mA
    • Standby/Idle (Typical)
      • < 300 mA
  • Input Voltage
    • 4.5 - 14.0 VDC
Environmental
  • Ambient Light
    • Indoor
      0 to 6,000 lux
    • Outdoor
      0 to 86,100 lux
  • Drop Resistance
    • Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 25 kV
  • Humidity (Non-Condensing)
    • 5 - 95%
  • Particulate and Water Sealing
    • IP52
  • Temperature
    • Operating
      • 0 to 40 ?C / 32 to 104 ?F
    • Storage/Transport
      • -40 to 70 ?C / -40 to 158 ?F
Interfaces
  • IBM 46xx
  • Keyboard Wedge
  • OEM (IBM) USB
  • RS-232
  • USB
Optional Features
  • EAS Features
    • Checkpoint Systems
      • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models
    • Sensormatic
      • Good Read Acknowledgement
  • Value Added Features
    • Diagnostic Reporting
    • Host Download
    • Productivity Index Reporting? (PIR)
Physical Characteristics
  • Colors Available
    • Black
    • Grey
    • Other colors and custom logo options are available for minimum quantity purchase.
  • Dimensions
    • Riser Stand
      5.8 x 7.4 x 9.7 cm / 2.3 x 2.9 x 3.8 in
    • Scanner
      8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
  • Weight
    • Riser Stand
      187.1 g / 6.6 oz
    • Scanner
      198.5 g / 7.0 oz
Reading Performance
  • Image Capture
    • Optional
      752 x 480 pixels
    • Graphic Formats
      • JPEG
  • Print Contrast Ratio (Minimum)
    • 25%
  • Read Rate (Maximum)
    • 1,768 digital scan lines/sec.
  • Reading Angle
    • Pitch
      • +/- 65?
    • Roll (Tilt)
      • 0 - 360?
    • Skew (Yaw)
      • +/- 75?
  • Reading Indicators
    • Beeper (Adjustable Tone and Volume)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 0.130 mm / 5 mils
  • Scan Lines
    • Digital
      136
Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • 5 mils
    • 1.3 to 4.6 cm / 0.5 to 1.8 in
  • 7.5 mils
    • 0.63 to 5.71 cm / 0.25 to 2.25 in
  • 10 mils
    • 0 to 12.7 cm / 0 to 5.0 in
  • 13 mils
    • 0 to 17.7 cm / 0 to 7.0 in
  • 20 mils
    • 0 to 17.7 cm / 0 to 7.0 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to EU RoHS
  • LED Classification
    • IEC 60825 Class 1 LED
Utilities
  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge
    • OPOS Utilities are available for download at no charge
  • Remote Host Download
    • Lowers service costs and improves operations
Warranty
  • 2-Year Factory Warranty
Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. Serial (3)
  2. USB (1)
Form Factor
  1. Presentation (27)
Scanner Capability
  1. 2D (9)
  2. 1D (5)
Connectivity
  1. Corded (2)
Scanner Type
  1. Imager (11)
  2. CCD (1)
Included Cables
  1. USB (1)
Color
  1. Black (2)
  1. Datalogic MG110010-000 Barcode Scanner

    Datalogic MG110010-000 Barcode Scanner
    Part #: MG110010-000 | SKU: DAT81293

    Multi-Interface, No Button, 1D only, Black, RS232 Config. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).
  2. Datalogic MG112015-001-119 Barcode Scanner

    Datalogic MG112015-001-119 Barcode Scanner
    Part #: MG112015-001-119 | SKU: DAT81298

    with Green Spot, 1D only and RS232 Verifone Ruby Kit. Color: Black
  3. Datalogic MG112010-000 Barcode Scanner

    Datalogic MG112010-000 Barcode Scanner
    Part #: MG112010-000 | SKU: DAT87009

    Datalogic Magellan 1100i Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Serial - Black
  4. Datalogic MG110041-001-412B Barcode Scanner

    Datalogic MG110041-001-412B Barcode Scanner
    Part #: MG110041-001-412B | SKU: DAT81854

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - USB - Black
  5. Datalogic MG118041-000-412B Barcode Scanner

    Datalogic MG118041-000-412B Barcode Scanner
    Part #: MG118041-000-412B | SKU: DAT100057

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Serial
  6. Datalogic MG112010-000B Barcode Scanner

    Datalogic MG112010-000B Barcode Scanner
    Part #: MG112010-000B | SKU: DAT81295

    Multi-Interface, Button w/Targeting Green Spot, 2D Decoding, Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).
  7. Datalogic MG112010-101-106 Barcode Scanner

    Datalogic MG112010-101-106 Barcode Scanner
    Part #: MG112010-101-106 | SKU: DAT81296

    RS-232 Kit, Button w/Targeting Green Spot, 1D only, Riser Stand, Power Supply (US), RS-232 DB9 2 m Cable, Black (Kit includes Scanner, Stand, Power Supply and Cable.)
  8. Datalogic MG113041-002-411 Barcode Scanner

    Datalogic MG113041-002-411 Barcode Scanner
    Part #: MG113041-002-411 | SKU: DAT81230

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - USB - Gray
  9. Datalogic MG110010-000B Barcode Scanner

    Datalogic MG110010-000B Barcode Scanner
    Part #: MG110010-000B | SKU: DAT81294

    Datalogic Magellan 1100i Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Serial - Black
  10. Datalogic MG112020-101-201 Barcode Scanner

    Datalogic MG112020-101-201 Barcode Scanner
    Part #: MG112020-101-201 | SKU: DAT84469

    Datalogic Magellan 1100i Desktop Barcode Scanner - Cable Connectivity - 1768 scan/s - Imager - Omni-directional - Black

Items 11 to 20 of 27 total

Page:
  2. 1
  3. 2
  4. 3

Recommended Accessories for Model: Datalogic Magellan 1100i Barcode Scanner

  • Datalogic 11-0387 Power Device
    Part #: 11-0387 | SKU: DAT81302

    Power Supply Kit - 5 Volt DC - AC/DC - Brick with NA Adapter
    MSRP: $43.00 Price: $33.07

  • Datalogic 11-0114 Accessory
    Part #: 11-0114 | SKU: DAT20274

    3" riser stand w/tilt adjustment & fixed mounting holes,black
